UCL1E561MNL1GS

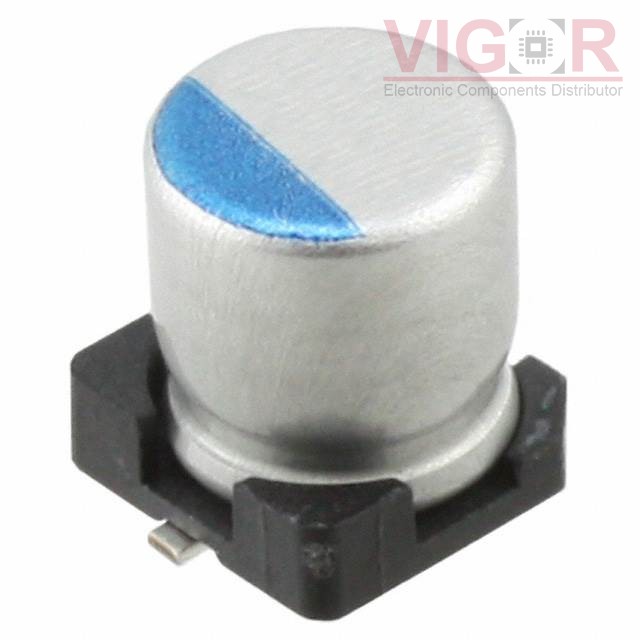

Product image
Product thumb
Part No :

UCL1E561MNL1GS

Manufacturer
Nichicon
VIGOR # :

972818

Description
CAP ALUM 560UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
DataSheet
UCL1E561MNL1GS PDF
Country of origin
-
Date code
-
ads
UCL1E561MNL1GS Specifications
Type Description
Series:UCL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:560 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:425 mA @ 120 Hz
Ripple Current @ High Frequency:850 mA @ 100 kHz
Impedance:80 mOhms
Lead Spacing:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.394" (10.00mm)
Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 15209
Shipped from
HK warehouse
Expected Shipping Date
Apr 09 - Apr 13 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.0300 $1.03
500 $0.3962 $198.08
1000 $0.3411 $341.13
2500 $0.3191 $797.80
5000 $0.3026 $1 513.10
12500 $0.2868 $3 584.63
25000 $0.2806 $7 015.25

Current price of UCL1E561MNL1GS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
80USG5600MEFCSN30X45

80USG5600MEFCSN30X45

CAP ALUM 5600UF 20% 80V SNAP

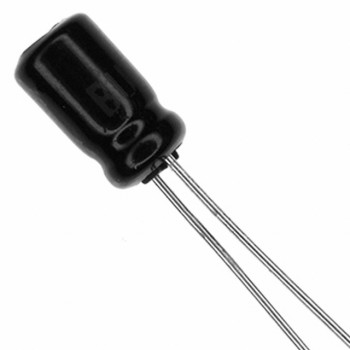

ECE-A1CKA220I

ECE-A1CKA220I

CAP ALUM 22UF 20% 16V RADIAL

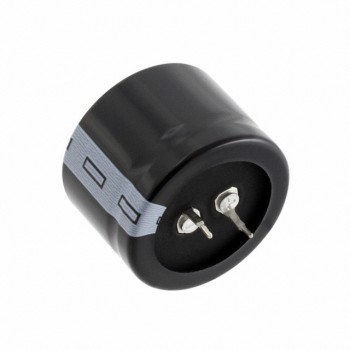

B41231D6568M000
