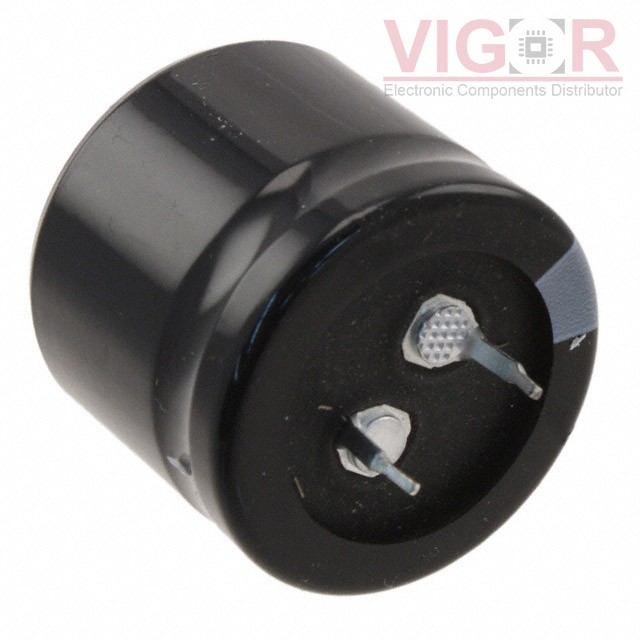

EET-ED2E561DA

Part No :: EET-ED2E561DA

Manufacturer: Panasonic

VIGOR # :: 4354297

Description: CAP ALUM 560UF 20% 250V SNAP

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EET-ED2E561DA PDF

Country of origin: -

Date code: -

EET-ED2E561DA Specifications

Type	Description
Series:	TS-ED
Package:	Bulk
Part Status:	Obsolete
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	250 V
ESR (Equivalent Series Resistance):	266mOhm @ 120Hz
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	2.14 A @ 120 Hz
Ripple Current @ High Frequency:	3.05 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.181" Dia (30.00mm)
Height - Seated (Max):	1.181" (30.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In
