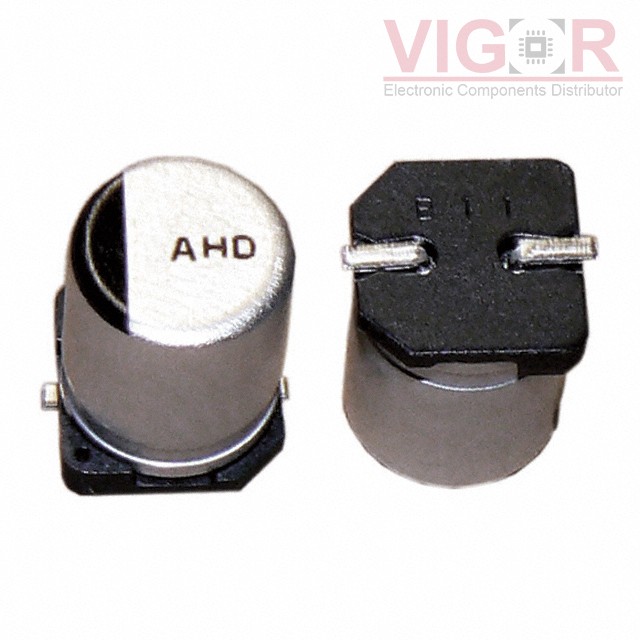

AHD476M16D16B

Part No :: AHD476M16D16B

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 4355973

Description: CAP ALUM 47UF 20% 16V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: AHD476M16D16B PDF

Country of origin: -

Date code: -

AHD476M16D16B Specifications

Type	Description
Series:	AHD
Package:	Bulk
Part Status:	Obsolete
Capacitance:	47 µF
Tolerance:	±20%
Voltage - Rated:	16 V
ESR (Equivalent Series Resistance):	7.1Ohm @ 120Hz
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	55 mA @ 120 Hz
Ripple Current @ High Frequency:	93.5 mA @ 10 kHz
Impedance:	4 Ohms
Lead Spacing:	-
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.228" (5.80mm)
Surface Mount Land Size:	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
