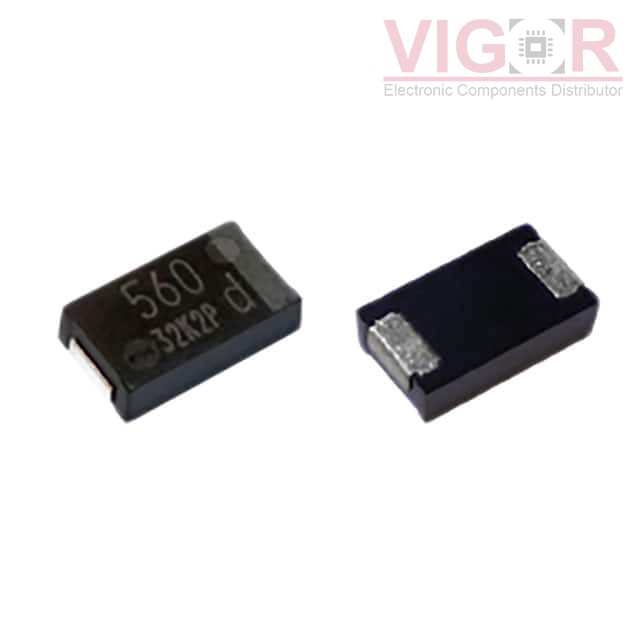

EEF-HX0D561R

Part No :: EEF-HX0D561R

Manufacturer: Panasonic

VIGOR # :: 1579251

Description: CAP ALUM POLY 560UF 20% 2V SMD

Catalog: Aluminum - Polymer Capacitors

DataSheet: EEF-HX0D561R PDF

Country of origin: -

Date code: -

EEF-HX0D561R Specifications

Type	Description
Series:	SP-Cap HX
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Polymer
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	2 V
ESR (Equivalent Series Resistance):	15mOhm
Lifetime @ Temp.:	1000 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	5.1 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max):	0.079" (2.00mm)
Surface Mount Land Size:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type:	Surface Mount
Package / Case:	2917 (7343 Metric)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 21 - Apr 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.5864~~	~~$0.59~~
3500	~~$0.5597~~	~~$1 958.95~~

Current price of EEF-HX0D561R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

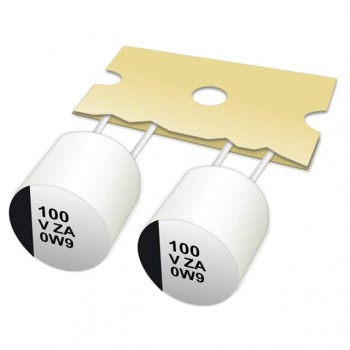

EEH-AZA1J560B

CAP ALUM POLY 56UF 20% 63V T/H

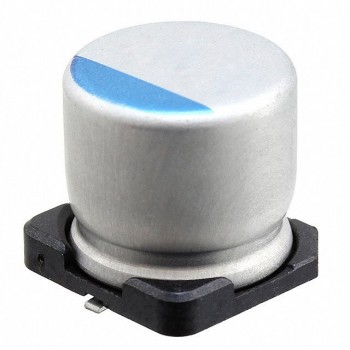

PCR1E331MCL1GS
