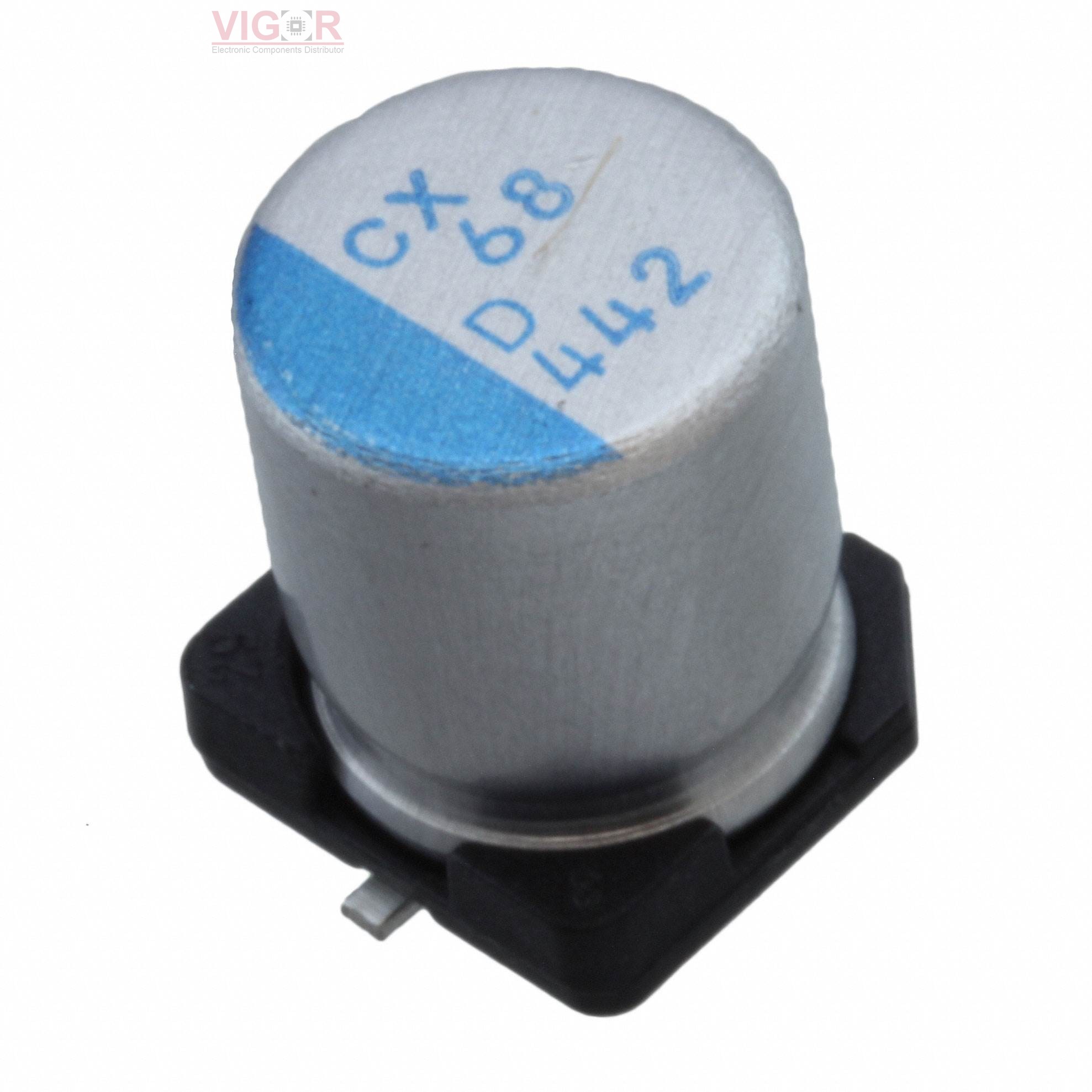

PCX1D680MCS1GS

Part No :: PCX1D680MCS1GS

Manufacturer: Nichicon

VIGOR # :: 1580116

Description: CAP ALUM POLY 68UF 20% 20V SMD

Catalog: Aluminum - Polymer Capacitors

DataSheet: PCX1D680MCS1GS PDF

Country of origin: -

Date code: -

PCX1D680MCS1GS Specifications

Type	Description
Series:	PCX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymer
Capacitance:	68 µF
Tolerance:	±20%
Voltage - Rated:	20 V
ESR (Equivalent Series Resistance):	34mOhm
Lifetime @ Temp.:	1500 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	1.45 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.319" (8.10mm)
Surface Mount Land Size:	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 18

Shipped from

HK warehouse

Expected Shipping Date

Feb 05 - Feb 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.62~~	~~$1.62~~
900	~~$0.62~~	~~$558.67~~
1800	~~$0.58~~	~~$1 047.51~~
2700	~~$0.54~~	~~$1 466.50~~
4500	~~$0.52~~	~~$2 356.88~~
9000	~~$0.50~~	~~$4 539.15~~

Current price of PCX1D680MCS1GS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
