EEF-CX1C220R

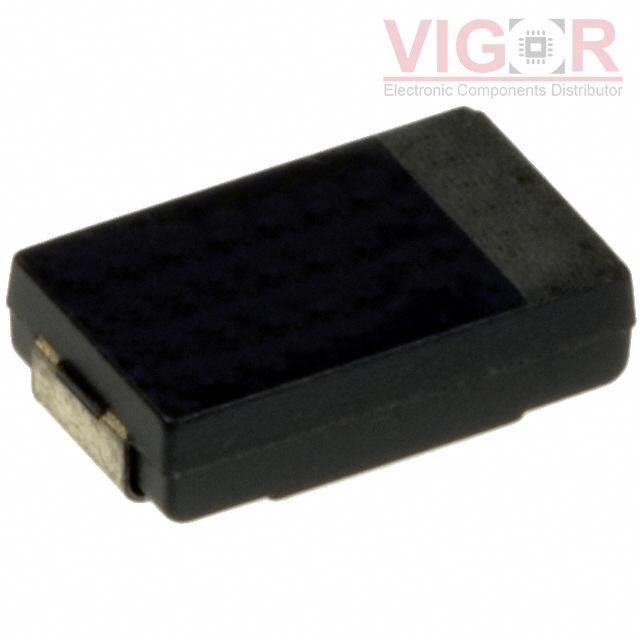

Product image
Product thumb
Part No :

EEF-CX1C220R

Manufacturer
Panasonic
VIGOR # :

1580929

Description
CAP ALUM POLY 22UF 20% 16V SMD
Catalog
Aluminum - Polymer Capacitors
DataSheet
EEF-CX1C220R PDF
Country of origin
-
Date code
-
ads
EEF-CX1C220R Specifications
Type Description
Series:SP-Cap CX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:Polymer
Capacitance:22 µF
Tolerance:±20%
Voltage - Rated:16 V
ESR (Equivalent Series Resistance):40mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:3.2 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max):0.075" (1.90mm)
Surface Mount Land Size:-
Mounting Type:Surface Mount
Package / Case:2917 (7343 Metric)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 646
Shipped from
HK warehouse
Expected Shipping Date
Apr 24 - Apr 28 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.6800 $1.68
3500 $0.5892 $2 062.13
7000 $0.5681 $3 976.91
10500 $0.5471 $5 744.55
17500 $0.5451 $9 539.07

Current price of EEF-CX1C220R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
