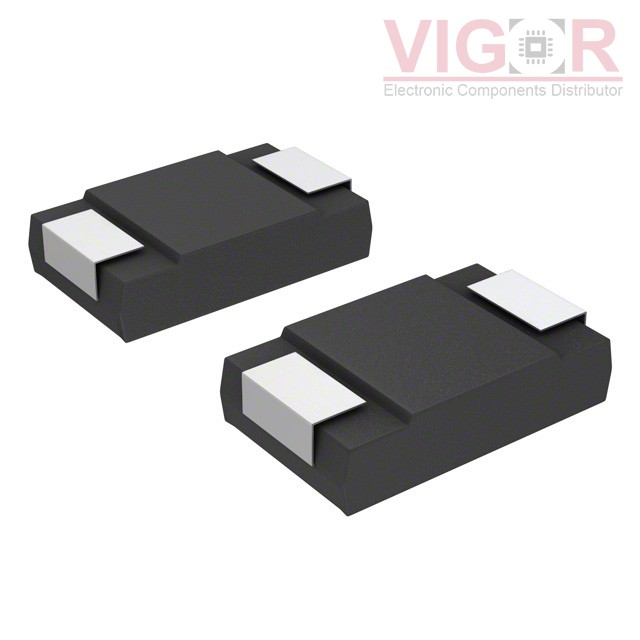

ESRD220M12B

Part No :: ESRD220M12B

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 1581772

Description: CAP ALUM POLY 22UF 20% 12.5V SMD

Catalog: Aluminum - Polymer Capacitors

DataSheet: ESRD220M12B PDF

Country of origin: -

Date code: -

ESRD220M12B Specifications

Type	Description
Series:	ESRD
Package:	Bulk
Part Status:	Obsolete
Type:	Polymer
Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	12.5 V
ESR (Equivalent Series Resistance):	30mOhm
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Applications:	Bypass, Decoupling
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	1.6 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max):	0.071" (1.80mm)
Surface Mount Land Size:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type:	Surface Mount
Package / Case:	2917 (7343 Metric)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 9

Shipped from

HK warehouse

Expected Shipping Date

Apr 08 - Apr 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.7600~~	~~$1.76~~
10	~~$1.3860~~	~~$13.86~~
