20SVF560M

20SVF560M

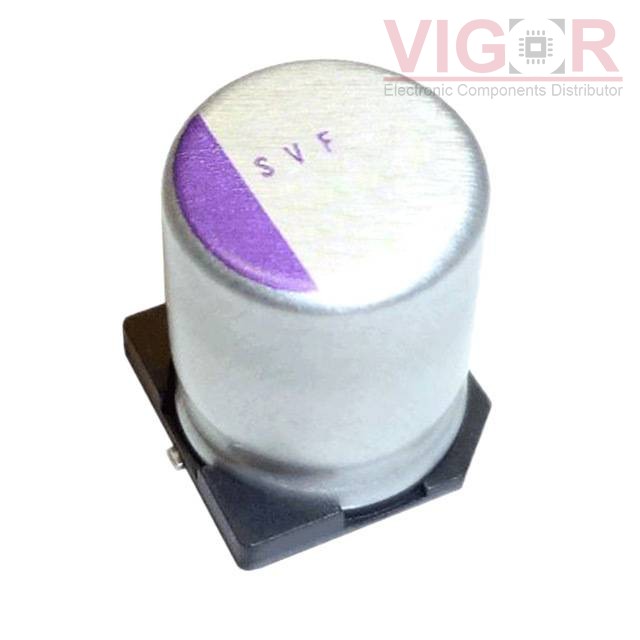

Image is for reference,
please contact us to get the real picture

Part No :

20SVF560M

Manufacturer
Panasonic
Description
CAP ALUM POLY 560UF 20% 20V SMD
Catalog
Aluminum - Polymer Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Oct 09 - Oct 13 2025
DataSheet
20SVF560M PDF
Availability
891 pieces
Unit Price
$2.65000

Current price of 20SVF560M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

20SVF560M Specifications
Type Description
Series:OS-CON™, SVF
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Polymer
Capacitance:560 µF
Tolerance:±20%
Voltage - Rated:20 V
ESR (Equivalent Series Resistance):12mOhm
Lifetime @ Temp.:1000 Hrs @ 125°C
Operating Temperature:-55°C ~ 125°C
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:85 mA @ 120 Hz
Ripple Current @ High Frequency:1.7 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.500" (12.70mm)
Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PLV1H680MDL1TD

PLV1H680MDL1TD

CAP ALUM POLY 68UF 20% 50V T/H

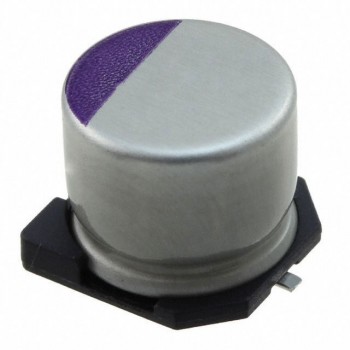

HOT 10SVPS150M

10SVPS150M

CAP ALUM POLY 150UF 20% 10V SMD

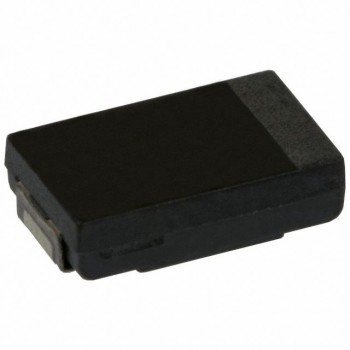

HOT EEF-SX0G101ER

EEF-SX0G101ER

CAP ALUM POLY 100UF 20% 4V SMD
Recently Viewed
1111Y1000301JQT

1111Y1000301JQT

CAP CER 300PF 100V C0G/NP0 1111

B32652A6334J000

B32652A6334J000

CAP FILM 0.33UF 5% 630VDC RADIAL

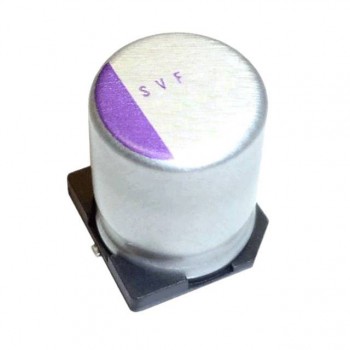

20SVF560M
