EEH-AZS1E561B

Part No :: EEH-AZS1E561B

Manufacturer: Panasonic

VIGOR # :: 1582639

Description: CAP ALUM POLY 560UF 20% 25V T/H

Catalog: Aluminum - Polymer Capacitors

DataSheet: EEH-AZS1E561B PDF

Country of origin: -

Date code: -

EEH-AZS1E561B Specifications

Type	Description
Series:	ZS
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Type:	Hybrid
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	14mOhm
Lifetime @ Temp.:	4000 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	600 mA @ 100 Hz
Ripple Current @ High Frequency:	4 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.657" (16.70mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 25 - Jan 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.48~~	~~$2.48~~

Current price of EEH-AZS1E561B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RNU1E221MDN1KX

CAP ALUM POLY 220UF 20% 25V T/H

MAL218497609E3

CAP ALUM 220UF 25V 2000H

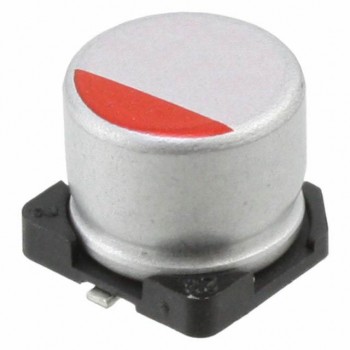

RHA0G561MCN1GS
