CBR04C509B1GAC

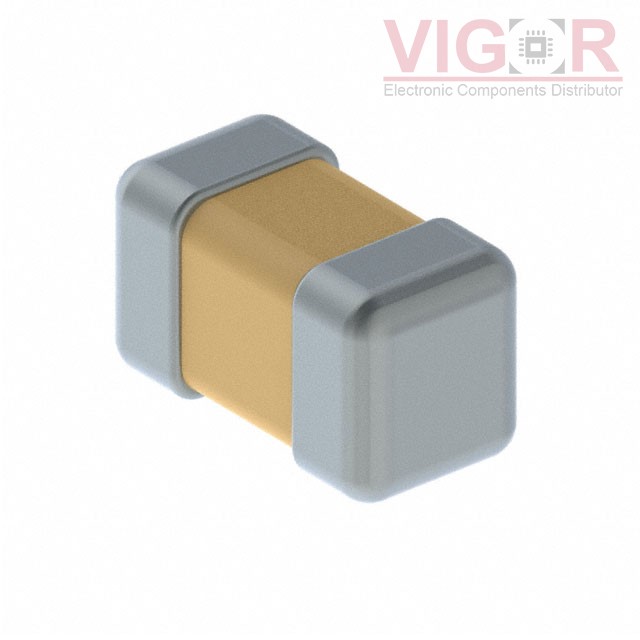

Image is for reference,
please contact us to get the real picture

Part No :: CBR04C509B1GAC

Manufacturer: KEMET

Description: CAP CER 5PF 100V C0G/NP0 0402

Catalog: Ceramic Capacitors

DataSheet: CBR04C509B1GAC PDF

Availability: 15751 pieces

Unit Price: ~~$0.34000~~

Current price of CBR04C509B1GAC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CBR04C509B1GAC Specifications

Type	Description
Series:	CBR-SMD RF C0G
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	5 pF
Tolerance:	±0.1pF
Voltage - Rated:	100V
Temperature Coefficient:	C0G, NP0
Operating Temperature:	-55°C ~ 125°C
Features:	High Q, Low Loss, Ultra Low ESR
Ratings:	-
Applications:	RF, Microwave, High Frequency
Failure Rate:	-
Mounting Type:	Surface Mount, MLCC
Package / Case:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	-
Thickness (Max):	0.022" (0.55mm)
Lead Spacing:	-
Lead Style:	-

Please confirm the specifications of the products when ordering.
