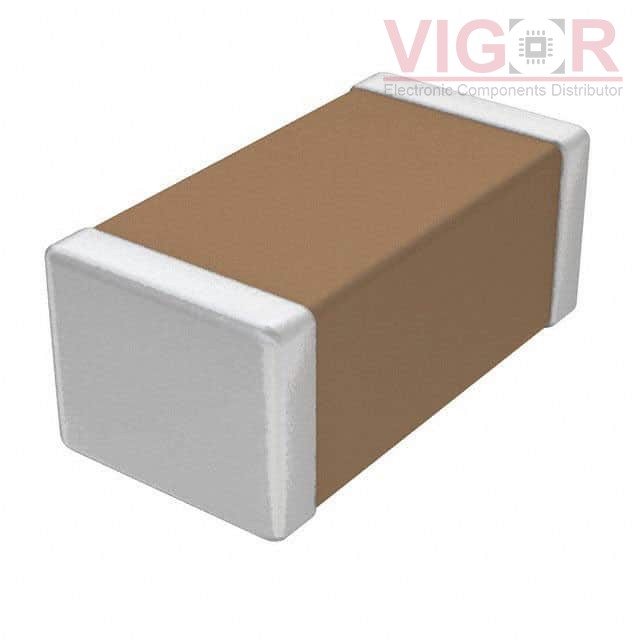

CHV0805N5005R6CCT

Part No :: CHV0805N5005R6CCT

Manufacturer: CAL-CHIP ELECTRONICS INC.

VIGOR # :: 1383671

Description: CAP CER 5.6PF 500V C0G/NP0 0805

Catalog: Ceramic Capacitors

DataSheet: CHV0805N5005R6CCT PDF

Country of origin: -

Date code: -

CHV0805N5005R6CCT Specifications

Type	Description
Series:	CHV
Package:	Tape & Reel (TR)
Part Status:	Active
Capacitance:	5.6 pF
Tolerance:	±0.25pF
Voltage - Rated:	500V
Temperature Coefficient:	C0G, NP0
Operating Temperature:	-55°C ~ 125°C
Features:	High Voltage
Ratings:	-
Applications:	General Purpose
Failure Rate:	-
Mounting Type:	Surface Mount, MLCC
Package / Case:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	-
Thickness (Max):	0.043" (1.10mm)
Lead Spacing:	-
Lead Style:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 40000

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.05~~	~~$0.05~~

Current price of CHV0805N5005R6CCT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
