HQCCWM560GAH6A

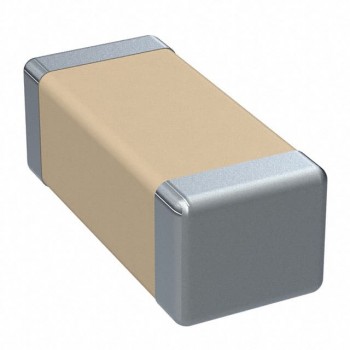

Image is for reference,
please contact us to get the real picture

Part No :: HQCCWM560GAH6A

Manufacturer: Elco (AVX)

Description: CAP CER 56PF 2.5KV P90 2325

Catalog: Ceramic Capacitors

DataSheet: HQCCWM560GAH6A PDF

Availability: 57 pieces

Unit Price: ~~$22.74000~~

Current price of HQCCWM560GAH6A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HQCCWM560GAH6A Specifications

Type	Description
Series:	Hi-Q®
Package:	Tray
Part Status:	Active
Capacitance:	56 pF
Tolerance:	±2%
Voltage - Rated:	2500V (2.5kV)
Temperature Coefficient:	P90
Operating Temperature:	-55°C ~ 125°C
Features:	High Q, Low Loss, Ultra Low ESR, High Voltage
Ratings:	-
Applications:	RF, Microwave, High Frequency
Failure Rate:	-
Mounting Type:	Surface Mount, MLCC
Package / Case:	2325 (5864 Metric)
Size / Dimension:	0.230" L x 0.250" W (5.84mm x 6.35mm)
Height - Seated (Max):	-
Thickness (Max):	0.145" (3.68mm)
Lead Spacing:	-
Lead Style:	-
