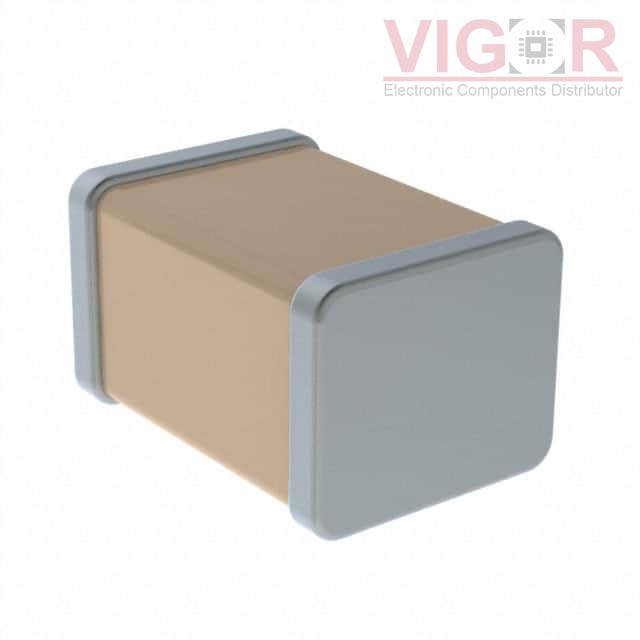

HV1812Y561JXMATHV

Part No :: HV1812Y561JXMATHV

Manufacturer: Vishay / Vitramon

VIGOR # :: 1526545

Description: CAP CER 560PF 5KV X7R 1812

Catalog: Ceramic Capacitors

DataSheet: HV1812Y561JXMATHV PDF

Current price of HV1812Y561JXMATHV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HV1812Y561JXMATHV Specifications

Type	Description
Series:	HV
Package:	Tape & Reel (TR)
Part Status:	Active
Capacitance:	560 pF
Tolerance:	±5%
Voltage - Rated:	5000V (5kV)
Temperature Coefficient:	X7R
Operating Temperature:	-55°C ~ 125°C
Features:	High Voltage
Ratings:	-
Applications:	General Purpose
Failure Rate:	-
Mounting Type:	Surface Mount, MLCC
Package / Case:	1812 (4532 Metric)
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	-
Thickness (Max):	0.106" (2.70mm)
Lead Spacing:	-
Lead Style:	-

Please confirm the specifications of the products when ordering.
