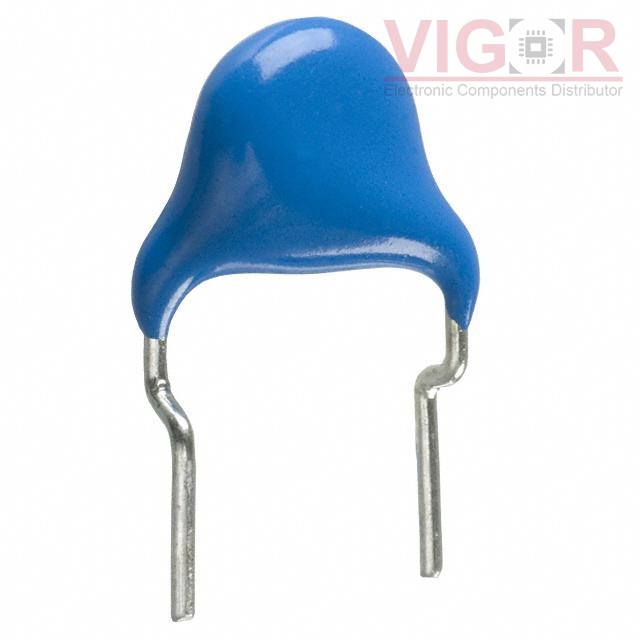

CK45-B3FD561KYNR

Part No :: CK45-B3FD561KYNR

Manufacturer: TDK Corporation

VIGOR # :: 4364311

Description: CAP CER 560PF 3KV RADIAL

Catalog: Ceramic Capacitors

DataSheet: CK45-B3FD561KYNR PDF

Country of origin: -

Date code: -

CK45-B3FD561KYNR Specifications

Type	Description
Series:	CK45
Package:	Bulk
Part Status:	Obsolete
Capacitance:	560 pF
Tolerance:	±10%
Voltage - Rated:	3000V (3kV)
Temperature Coefficient:	B
Operating Temperature:	-25°C ~ 105°C
Features:	High Voltage
Ratings:	-
Applications:	General Purpose
Failure Rate:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.276" Dia (7.00mm)
Height - Seated (Max):	0.433" (11.00mm)
Thickness (Max):	-
Lead Spacing:	0.295" (7.50mm)
Lead Style:	Formed Leads - Kinked

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 27 - Jan 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of CK45-B3FD561KYNR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
