ECH-U1C822JB5

ECH-U1C822JB5

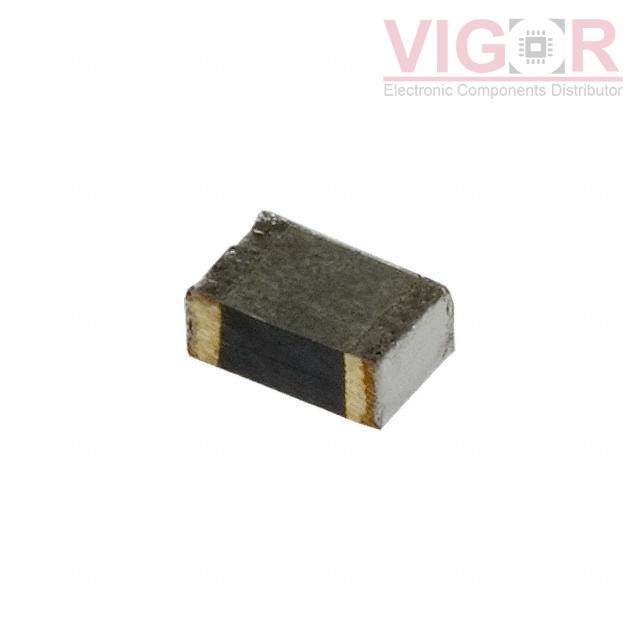

Image is for reference,
please contact us to get the real picture

Part No :

ECH-U1C822JB5

Manufacturer
Panasonic
Description
CAP FILM 8200PF 5% 16VDC 0805
Catalog
Film Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Oct 07 - Oct 11 2025
DataSheet
ECH-U1C822JB5 PDF
Availability
70652 pieces
Unit Price
$0.71000

Current price of ECH-U1C822JB5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECH-U1C822JB5 Specifications
Type Description
Series:ECH-U(B)
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:8200 pF
Tolerance:±5%
Voltage Rating - AC:11V
Voltage Rating - DC:16V
Dielectric Material:Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.047" (1.20mm)
Termination:Solder Pads
Lead Spacing:-
Applications:General Purpose
Ratings:-
Features:-
