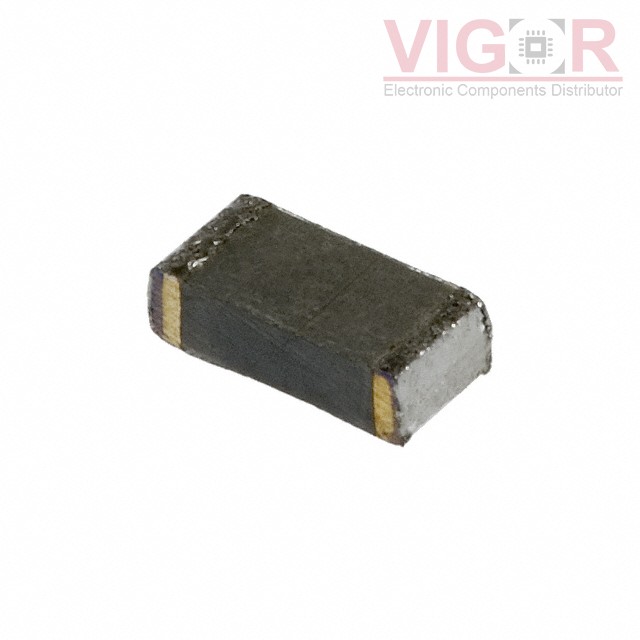

ECH-U1H562GB5

Part No :: ECH-U1H562GB5

Manufacturer: Panasonic

VIGOR # :: 1563595

Description: CAP FILM 5600PF 2% 50VDC 1206

Catalog: Film Capacitors

DataSheet: ECH-U1H562GB5 PDF

Current price of ECH-U1H562GB5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECH-U1H562GB5 Specifications

Type	Description
Series:	ECH-U(B)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	5600 pF
Tolerance:	±2%
Voltage Rating - AC:	30V
Voltage Rating - DC:	50V
Dielectric Material:	Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.039" (1.00mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-

Please confirm the specifications of the products when ordering.
