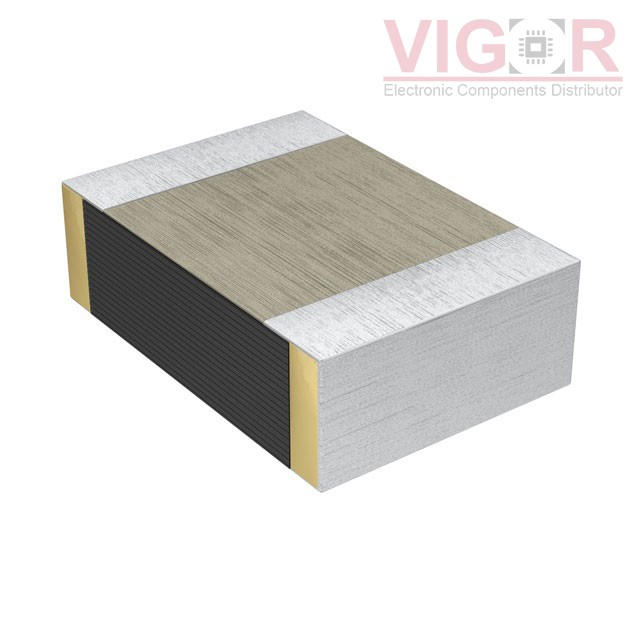

ECH-U1H563JX9

Part No :: ECH-U1H563JX9

Manufacturer: Panasonic

Description: CAP FILM 0.056UF 5% 50VDC 1913

Catalog: Film Capacitors

DataSheet: ECH-U1H563JX9 PDF

Availability: 337 pieces

Current price of ECH-U1H563JX9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECH-U1H563JX9 Specifications

Type	Description
Series:	ECH-U(X)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	0.056 µF
Tolerance:	±5%
Voltage Rating - AC:	30V
Voltage Rating - DC:	50V
Dielectric Material:	Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	1913 (4833 Metric)
Size / Dimension:	0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max):	0.067" (1.70mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-

Please confirm the specifications of the products when ordering.
