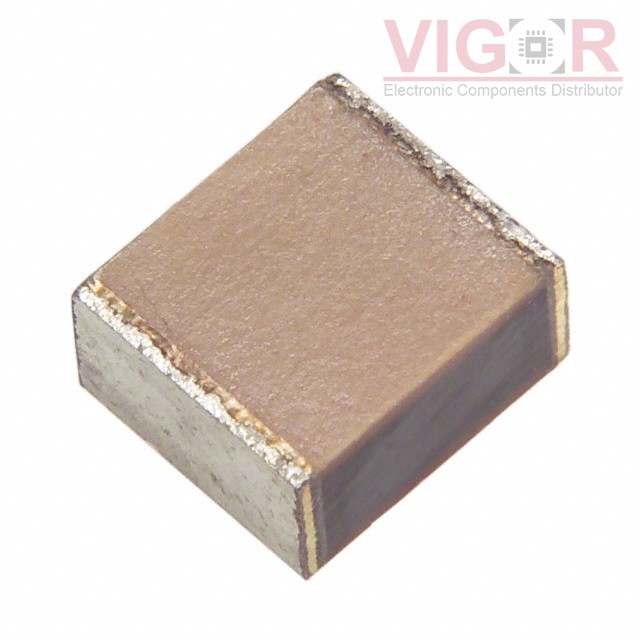

ECH-U1154JCV

Part No :: ECH-U1154JCV

Manufacturer: Panasonic

Description: CAP FILM 0.15UF 5% 100VDC 2825

Catalog: Film Capacitors

DataSheet: ECH-U1154JCV PDF

Availability: 558 pieces

Current price of ECH-U1154JCV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECH-U1154JCV Specifications

Type	Description
Series:	ECH-U(C)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	0.15 µF
Tolerance:	±5%
Voltage Rating - AC:	40V
Voltage Rating - DC:	100V
Dielectric Material:	Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	2825 (7163 Metric)
Size / Dimension:	0.280" L x 0.248" W (7.10mm x 6.30mm)
Height - Seated (Max):	0.146" (3.70mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-
