ECW-F6564HL

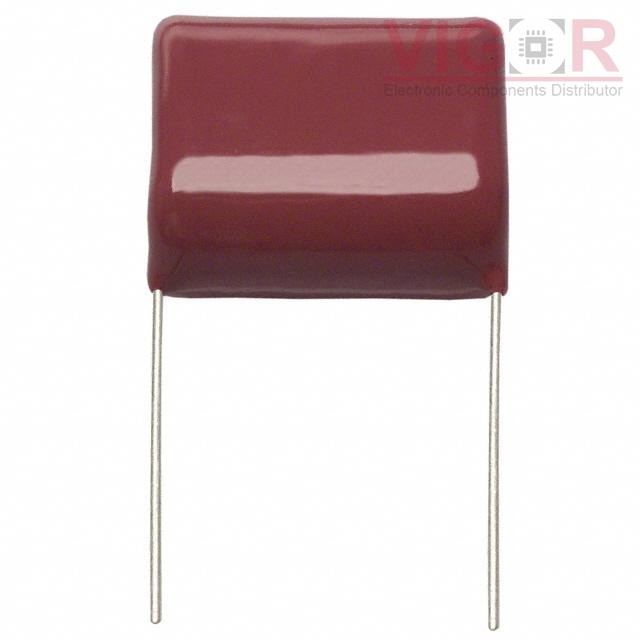

Product image
Product thumb
Part No :

ECW-F6564HL

Manufacturer
Panasonic
VIGOR # :

1566336

Description
CAP FILM 0.56UF 3% 630VDC RADIAL
Catalog
Film Capacitors
DataSheet
ECW-F6564HL PDF
Country of origin
-
Date code
-
ads
ECW-F6564HL Specifications
Type Description
Series:ECW-F(L)
Package:Bulk
Part Status:Active
Capacitance:0.56 µF
Tolerance:±3%
Voltage Rating - AC:223V
Voltage Rating - DC:630V
Dielectric Material:Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:1.102" L x 0.457" W (28.00mm x 11.60mm)
Height - Seated (Max):0.760" (19.30mm)
Termination:PC Pins
Lead Spacing:0.984" (25.00mm)
Applications:High Frequency, Switching
Ratings:-
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2512
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.1300 $2.13
10 $1.7210 $17.21
100 $1.3142 $131.42
500 $1.0013 $500.64
1000 $0.8761 $876.12
2500 $0.8448 $2 112.08
5000 $0.8135 $4 067.70

Current price of ECW-F6564HL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
