ECH-U1C563JX5

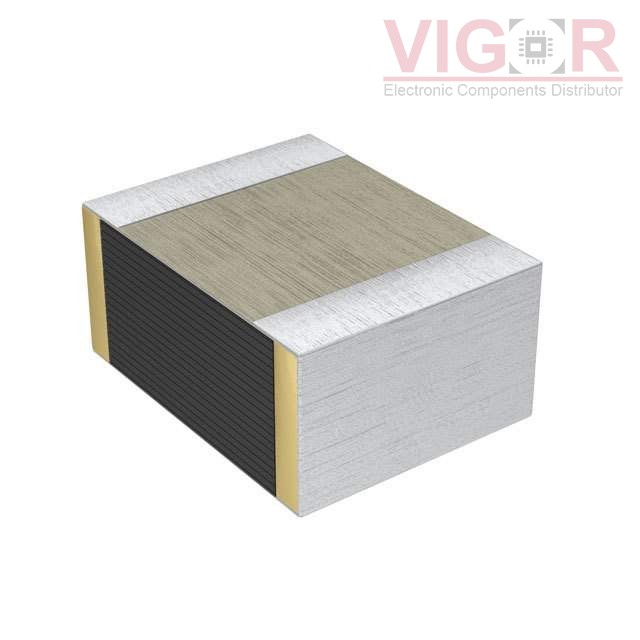

Product image
Product thumb
Part No :

ECH-U1C563JX5

Manufacturer
Panasonic
VIGOR # :

1568805

Description
CAP FILM 0.056UF 5% 16VDC 1210
Catalog
Film Capacitors
DataSheet
ECH-U1C563JX5 PDF
Country of origin
-
Date code
-
ads
ECH-U1C563JX5 Specifications
Type Description
Series:ECH-U(X)
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:0.056 µF
Tolerance:±5%
Voltage Rating - AC:11V
Voltage Rating - DC:16V
Dielectric Material:Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.067" (1.70mm)
Termination:Solder Pads
Lead Spacing:-
Applications:General Purpose
Ratings:-
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2026
Shipped from
HK warehouse
Expected Shipping Date
Jan 02 - Jan 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.67 $0.67
2000 $0.21 $424.50
4000 $0.20 $792.40
10000 $0.19 $1 910.30
14000 $0.19 $2 634.80
50000 $0.18 $9 020.50

Current price of ECH-U1C563JX5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
