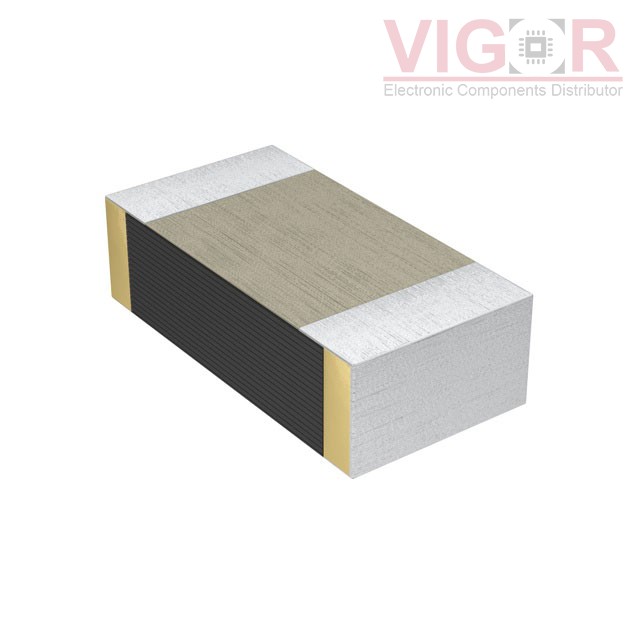

ECH-U1H682GX5

Part No :: ECH-U1H682GX5

Manufacturer: Panasonic

VIGOR # :: 1569416

Description: CAP FILM 6800PF 2% 50VDC 1206

Catalog: Film Capacitors

DataSheet: ECH-U1H682GX5 PDF

Country of origin: -

Date code: -

ECH-U1H682GX5 Specifications

Type	Description
Series:	ECH-U(X)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	6800 pF
Tolerance:	±2%
Voltage Rating - AC:	30V
Voltage Rating - DC:	50V
Dielectric Material:	Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.043" (1.10mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3992

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.53~~	~~$0.53~~
3000	~~$0.15~~	~~$438.72~~
6000	~~$0.14~~	~~$822.60~~
9000	~~$0.13~~	~~$1 151.64~~
15000	~~$0.13~~	~~$1 885.20~~
30000	~~$0.12~~	~~$3 701.70~~
75000	~~$0.12~~	~~$8 911.50~~

Current price of ECH-U1H682GX5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
