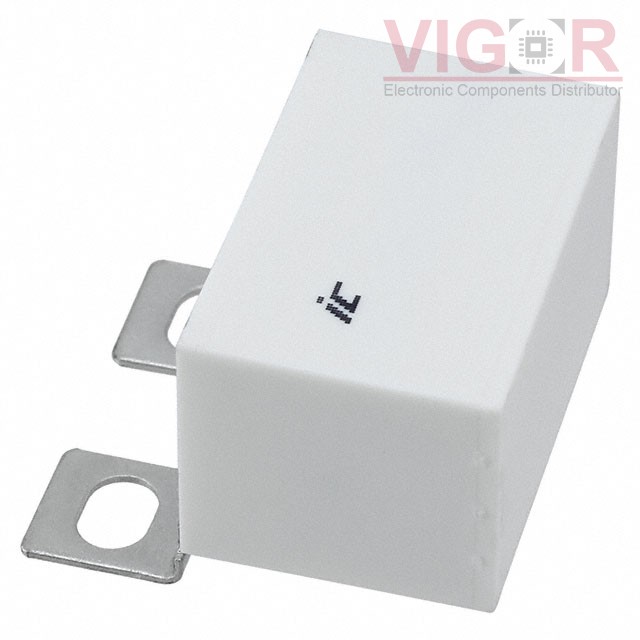

564PMB122KSP2

564PMB122KSP2

Image is for reference,
please contact us to get the real picture

Part No :

564PMB122KSP2

Manufacturer
Cornell Dubilier Electronics
Description
CAP FILM 0.56UF 1.2KVDC CHAS MT
Catalog
Film Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Oct 07 - Oct 11 2025
DataSheet
564PMB122KSP2 PDF
Availability
1291008 pieces
Unit Price
$11.50000

Current price of 564PMB122KSP2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

564PMB122KSP2 Specifications
Type Description
Series:PMB
Package:Bulk
Part Status:Active
Capacitance:0.56 µF
Tolerance:±10%
Voltage Rating - AC:630V
Voltage Rating - DC:1200V (1.2kV)
Dielectric Material:Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):3.7 mOhms
Operating Temperature:-40°C ~ 85°C
Mounting Type:Chassis Mount
Package / Case:Rectangular Box
Size / Dimension:1.673" L x 0.965" W (42.50mm x 24.50mm)
Height - Seated (Max):1.083" (27.50mm)
Termination:Screw Terminals
Lead Spacing:-
Applications:DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings:-
Features:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

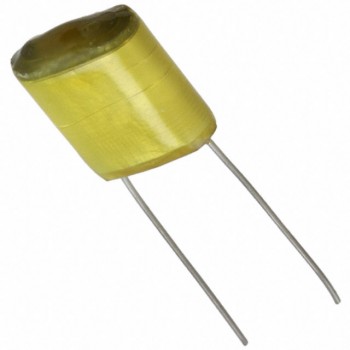

HOT QYX2A274JTP
