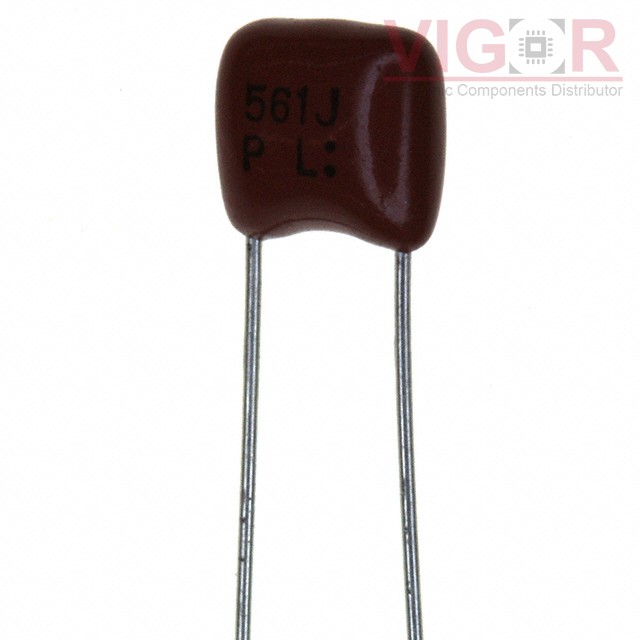

ECQ-P1H561JZ

Part No :: ECQ-P1H561JZ

Manufacturer: Panasonic

Description: CAP FILM 560PF 5% 50VDC RADIAL

Catalog: Film Capacitors

DataSheet: ECQ-P1H561JZ PDF

Availability: 0 pieces

Current price of ECQ-P1H561JZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECQ-P1H561JZ Specifications

Type	Description
Series:	ECQ-P(Z)
Package:	Bulk
Part Status:	Obsolete
Capacitance:	560 pF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	50V
Dielectric Material:	Polypropylene (PP)
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.335" L x 0.177" W (8.50mm x 4.50mm)
Height - Seated (Max):	0.492" (12.50mm)
Termination:	PC Pins
Lead Spacing:	0.197" (5.00mm)
Applications:	High Frequency, Switching
Ratings:	-
Features:	-
