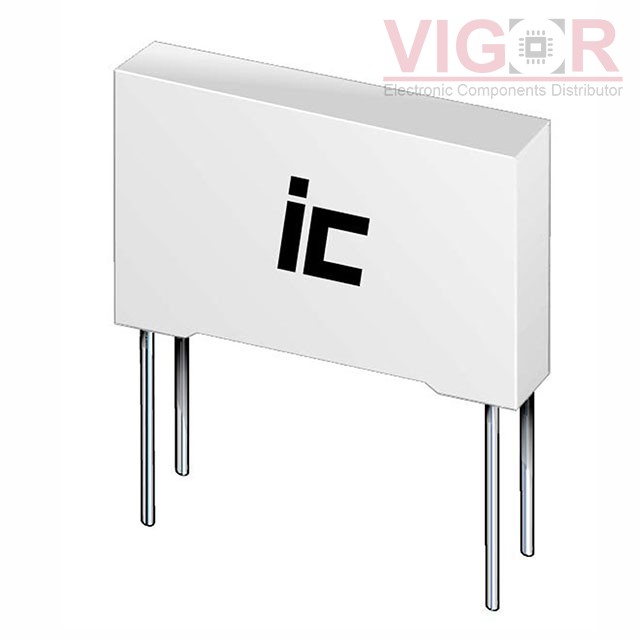

685PHB700K2R

Part No :: 685PHB700K2R

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 4428177

Description: CAP FILM 6.8UF 10% 700VDC RADIAL

Catalog: Film Capacitors

DataSheet: 685PHB700K2R PDF

Country of origin: -

Date code: -

685PHB700K2R Specifications

Type	Description
Series:	PHB
Package:	Bulk
Part Status:	Active
Capacitance:	6.8 µF
Tolerance:	±10%
Voltage Rating - AC:	400V
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	4.7 mOhms
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max):	1.772" (45.00mm)
Termination:	PC Pins
Lead Spacing:	2.067" (52.50mm)
Applications:	High Frequency, Switching
Ratings:	-
Features:	-
