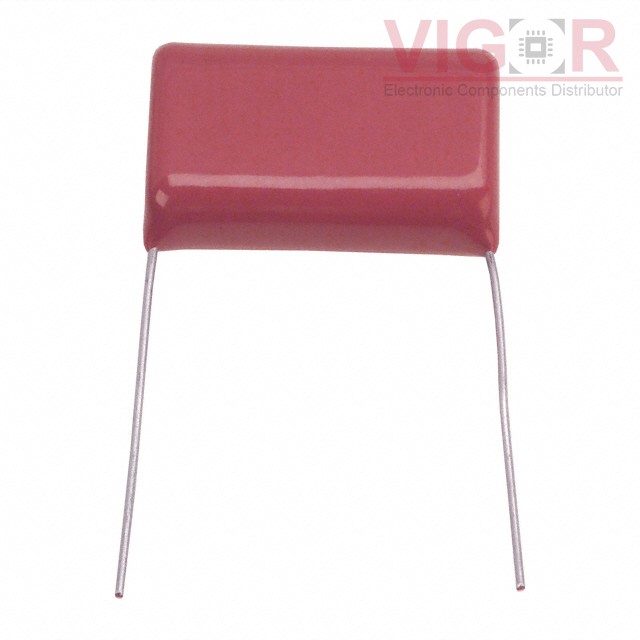

ECQ-E1685KZ

Part No :: ECQ-E1685KZ

Manufacturer: Panasonic

VIGOR # :: 4428504

Description: CAP FILM 6.8UF 10% 100VDC RADIAL

Catalog: Film Capacitors

DataSheet: ECQ-E1685KZ PDF

Country of origin: -

Date code: -

ECQ-E1685KZ Specifications

Type	Description
Series:	ECQ-E
Package:	Bulk
Part Status:	Obsolete
Capacitance:	6.8 µF
Tolerance:	±10%
Voltage Rating - AC:	-
Voltage Rating - DC:	100V
Dielectric Material:	Polyester, Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.201" L x 0.512" W (30.50mm x 13.00mm)
Height - Seated (Max):	0.984" (25.00mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Ratings:	-
Features:	-
