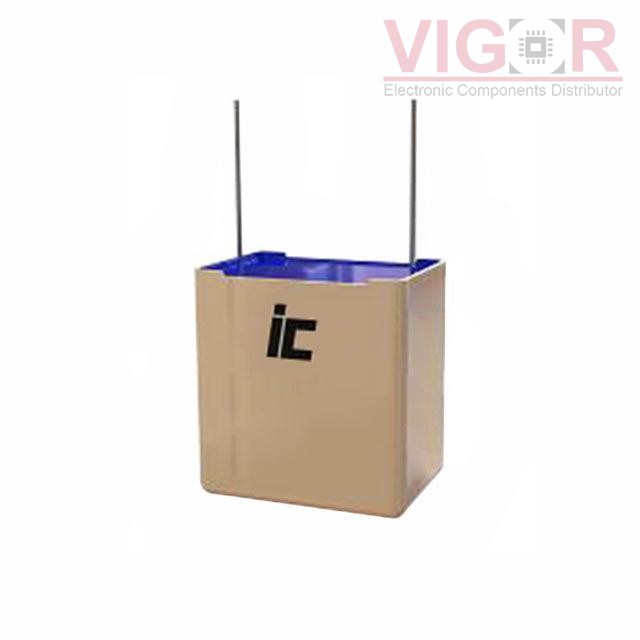

224MABA05KHL

Part No :: 224MABA05KHL

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 4428569

Description: CAP FILM 0.22UF 10% 1.2KVDC RAD

Catalog: Film Capacitors

DataSheet: 224MABA05KHL PDF

Country of origin: -

Date code: -

224MABA05KHL Specifications

Type	Description
Series:	MAB
Package:	Bulk
Part Status:	Obsolete
Capacitance:	0.22 µF
Tolerance:	±10%
Voltage Rating - AC:	500V
Voltage Rating - DC:	1200V (1.2kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.260" L x 0.433" W (32.00mm x 11.00mm)
Height - Seated (Max):	0.787" (20.00mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	Motor Run
Ratings:	-
Features:	-
