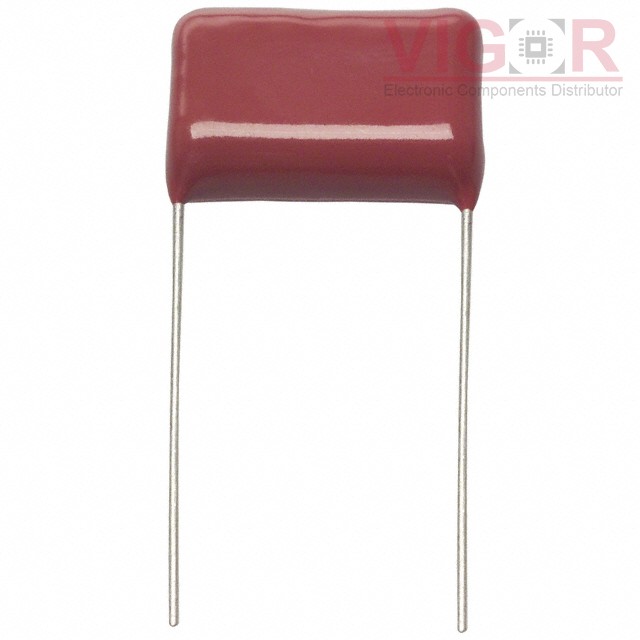

ECH-A22105JX

Part No :: ECH-A22105JX

Manufacturer: Panasonic

VIGOR # :: 4428957

Description: CAP FILM 1UF 5% 220VAC RADIAL

Catalog: Film Capacitors

DataSheet: ECH-A22105JX PDF

Country of origin: -

Date code: -

ECH-A22105JX Specifications

Type	Description
Series:	ECHAX
Package:	Bulk
Part Status:	Obsolete
Capacitance:	1 µF
Tolerance:	±5%
Voltage Rating - AC:	220V
Voltage Rating - DC:	-
Dielectric Material:	Polyester, Polyethylene, Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-25°C ~ 70°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.043" L x 0.394" W (26.50mm x 10.00mm)
Height - Seated (Max):	0.846" (21.50mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	Motor Run
Ratings:	-
Features:	-
