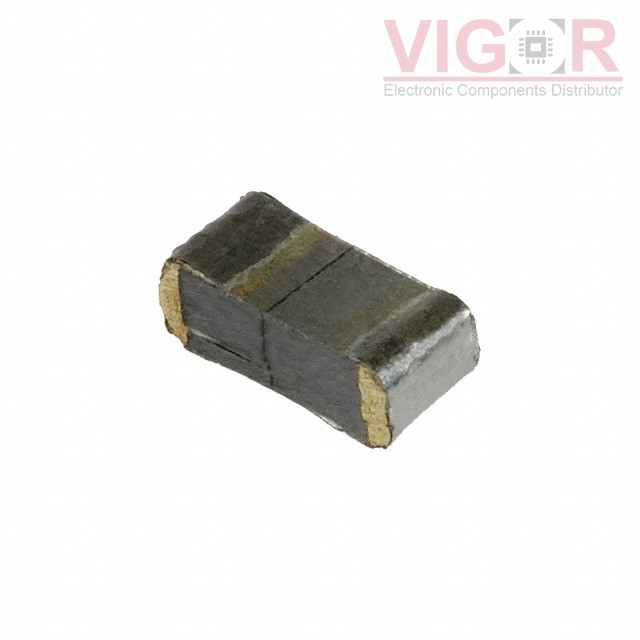

ECW-U1H563JB9

Part No :: ECW-U1H563JB9

Manufacturer: Panasonic

VIGOR # :: 4429445

Description: CAP FILM 0.056UF 5% 50VDC 1913

Catalog: Film Capacitors

DataSheet: ECW-U1H563JB9 PDF

Country of origin: -

Date code: -

ECW-U1H563JB9 Specifications

Type	Description
Series:	ECW-U(B)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Capacitance:	0.056 µF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	50V
Dielectric Material:	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	1913 (4833 Metric)
Size / Dimension:	0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max):	0.087" (2.20mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-
