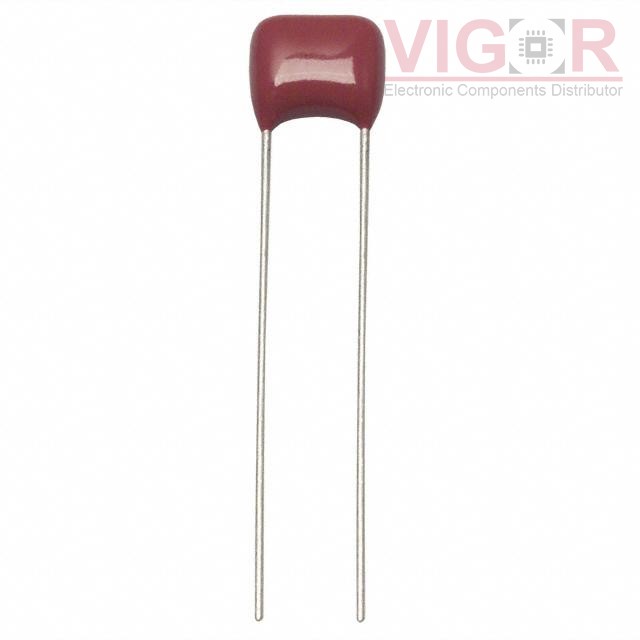

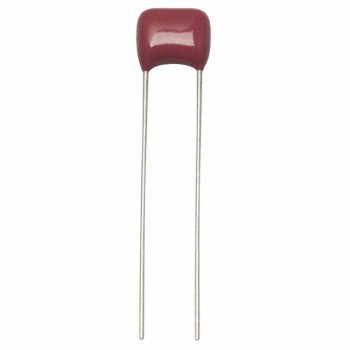

ECH-S1561JZ

Part No :: ECH-S1561JZ

Manufacturer: Panasonic

VIGOR # :: 4429457

Description: CAP FILM 560PF 5% 100VDC RADIAL

Catalog: Film Capacitors

DataSheet: ECH-S1561JZ PDF

Country of origin: -

Date code: -

ECH-S1561JZ Specifications

Type	Description
Series:	ECHS(Z)
Package:	Bulk
Part Status:	Obsolete
Capacitance:	560 pF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	100V
Dielectric Material:	Polyphenylene Sulfide (PPS)
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.335" L x 0.157" W (8.50mm x 4.00mm)
Height - Seated (Max):	0.295" (7.50mm)
Termination:	PC Pins
Lead Spacing:	0.197" (5.00mm)
Applications:	High Frequency, Switching
Ratings:	-
Features:	-
