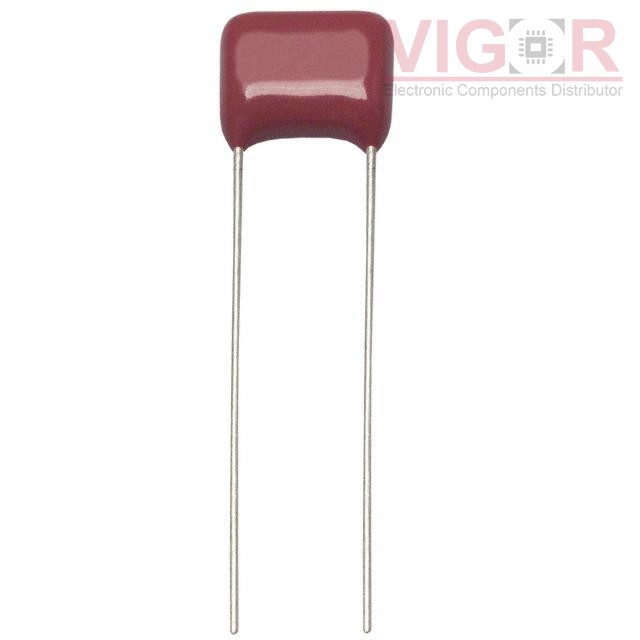

ECH-S1H223GZ

Part No :: ECH-S1H223GZ

Manufacturer: Panasonic

VIGOR # :: 4429567

Description: CAP FILM 0.022UF 2% 50VDC RADIAL

Catalog: Film Capacitors

DataSheet: ECH-S1H223GZ PDF

Country of origin: -

Date code: -

ECH-S1H223GZ Specifications

Type	Description
Series:	ECHS(Z)
Package:	Bulk
Part Status:	Obsolete
Capacitance:	0.022 µF
Tolerance:	±2%
Voltage Rating - AC:	-
Voltage Rating - DC:	50V
Dielectric Material:	Polyphenylene Sulfide (PPS)
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.472" L x 0.177" W (12.00mm x 4.50mm)
Height - Seated (Max):	0.362" (9.20mm)
Termination:	PC Pins
Lead Spacing:	0.295" (7.50mm)
Applications:	High Frequency, Switching
Ratings:	-
Features:	-
