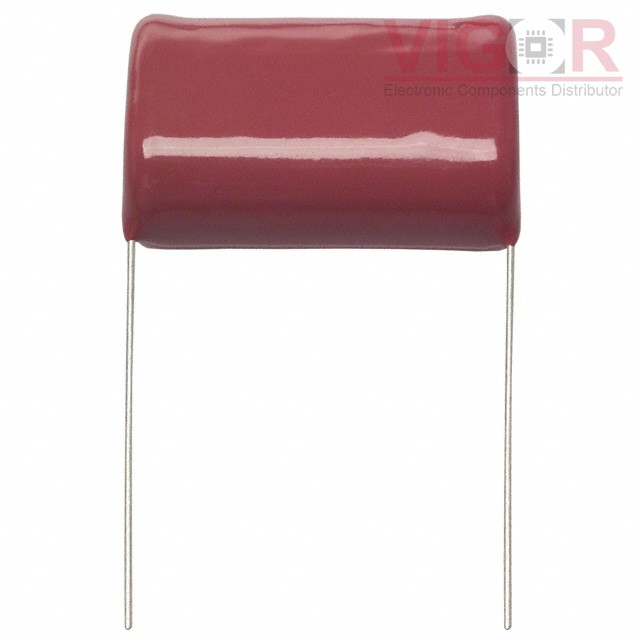

ECH-A22505JX

Part No :: ECH-A22505JX

Manufacturer: Panasonic

VIGOR # :: 4429820

Description: CAP FILM 5UF 5% 220VAC RADIAL

Catalog: Film Capacitors

DataSheet: ECH-A22505JX PDF

Country of origin: -

Date code: -

ECH-A22505JX Specifications

Type	Description
Series:	ECHAX
Package:	Bulk
Part Status:	Obsolete
Capacitance:	5 µF
Tolerance:	±5%
Voltage Rating - AC:	220V
Voltage Rating - DC:	-
Dielectric Material:	Polyester, Polyethylene, Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-25°C ~ 70°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.457" L x 0.709" W (37.00mm x 18.00mm)
Height - Seated (Max):	1.161" (29.50mm)
Termination:	PC Pins
Lead Spacing:	1.280" (32.50mm)
Applications:	Motor Run
Ratings:	-
Features:	-
