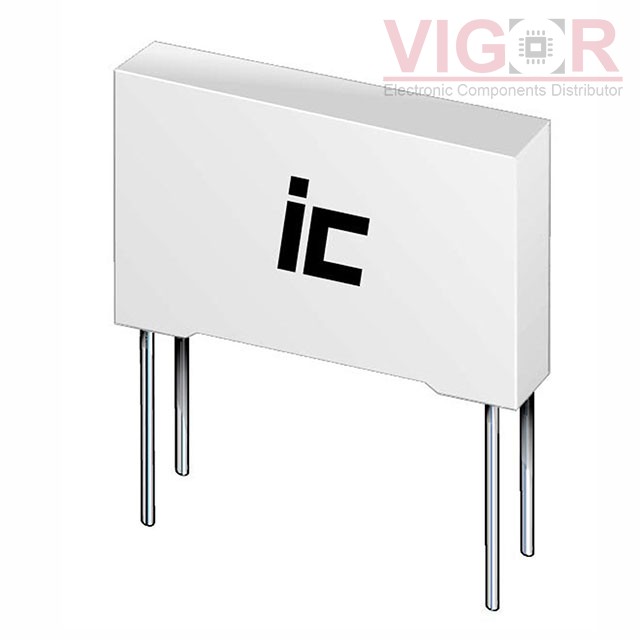

505PHB250K2H

Part No :: 505PHB250K2H

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 4429937

Description: CAP FILM 5UF 10% 250VDC RADIAL

Catalog: Film Capacitors

DataSheet: 505PHB250K2H PDF

Country of origin: -

Date code: -

505PHB250K2H Specifications

Type	Description
Series:	PHB
Package:	Bulk
Part Status:	Active
Capacitance:	5 µF
Tolerance:	±10%
Voltage Rating - AC:	160V
Voltage Rating - DC:	250V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	3.4 mOhms
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.260" L x 0.551" W (32.00mm x 14.00mm)
Height - Seated (Max):	1.102" (28.00mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	High Frequency, Switching
Ratings:	-
Features:	-
