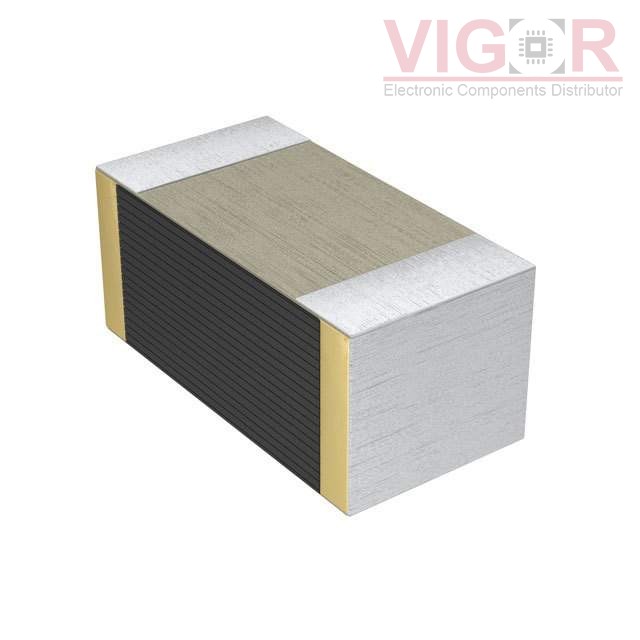

ECH-U01562GX5

Part No :: ECH-U01562GX5

Manufacturer: Panasonic

VIGOR # :: 4429942

Description: CAP FILM 5600PF 2% 10VDC 0603

Catalog: Film Capacitors

DataSheet: ECH-U01562GX5 PDF

Country of origin: -

Date code: -

ECH-U01562GX5 Specifications

Type	Description
Series:	ECH-U(X)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Capacitance:	5600 pF
Tolerance:	±2%
Voltage Rating - AC:	-
Voltage Rating - DC:	10V
Dielectric Material:	Polyphenylene Sulfide (PPS), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.028" (0.70mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	General Purpose
Ratings:	-
Features:	-
