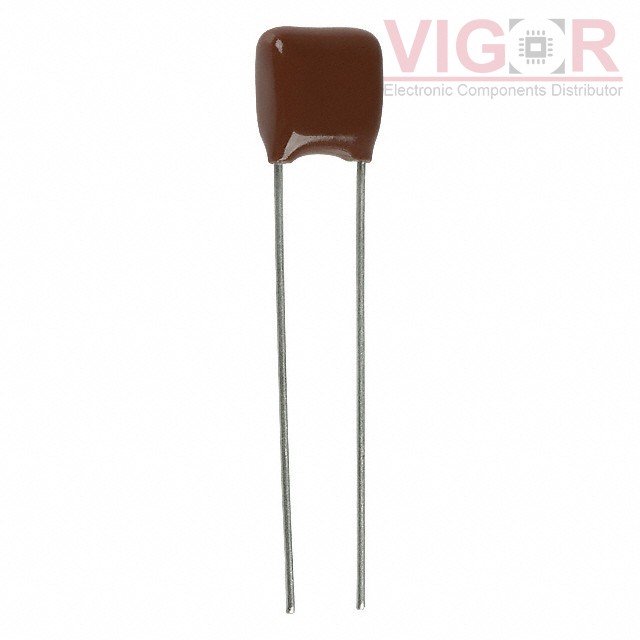

ECQ-B1822JF

Part No :: ECQ-B1822JF

Manufacturer: Panasonic

VIGOR # :: 4432144

Description: CAP FILM 8200PF 5% 100VDC RADIAL

Catalog: Film Capacitors

DataSheet: ECQ-B1822JF PDF

Country of origin: -

Date code: -

ECQ-B1822JF Specifications

Type	Description
Series:	ECQ-B(F)
Package:	Bulk
Part Status:	Obsolete
Capacitance:	8200 pF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	100V
Dielectric Material:	Polyester
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.283" L x 0.126" W (7.20mm x 3.20mm)
Height - Seated (Max):	0.315" (8.00mm)
Termination:	PC Pins
Lead Spacing:	0.197" (5.00mm)
Applications:	General Purpose
Ratings:	-
Features:	-
