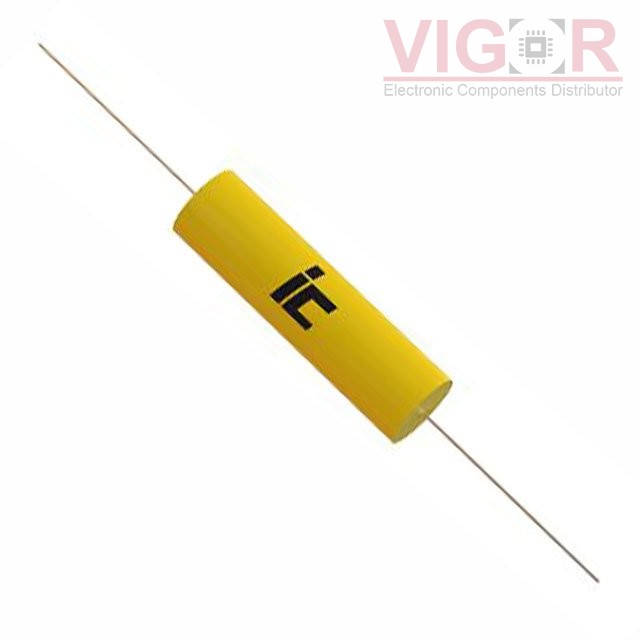

505PHC850K

Part No :: 505PHC850K

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 4432328

Description: CAP FILM 5UF 10% 850VDC AXIAL

Catalog: Film Capacitors

DataSheet: 505PHC850K PDF

Country of origin: -

Date code: -

505PHC850K Specifications

Type	Description
Series:	PHC
Package:	Bulk
Part Status:	Active
Capacitance:	5 µF
Tolerance:	±10%
Voltage Rating - AC:	500V
Voltage Rating - DC:	850V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	2.4 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Axial
Size / Dimension:	1.496" Dia x 2.165" L (38.00mm x 55.00mm)
Height - Seated (Max):	-
Termination:	PC Pins
Lead Spacing:	-
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	Low ESR, Low ESL

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 18 - Oct 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 505PHC850K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

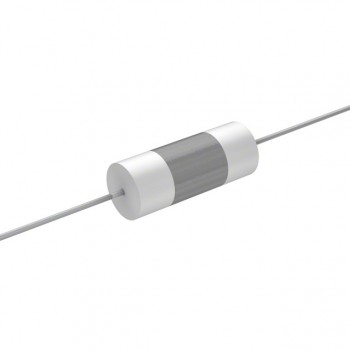

150183J400BB

CAP FILM 0.018UF 5% 400VDC AXIAL

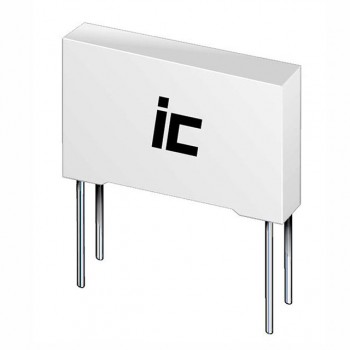

206PHB250K2J

CAP FILM 20UF 10% 250VDC RADIAL

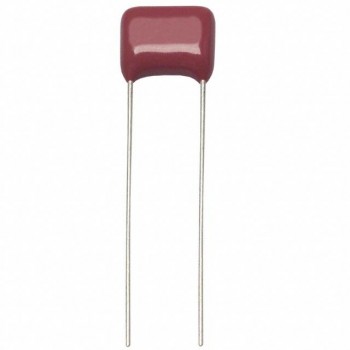

ECH-S1103JZ

CAP FILM 10000PF 5% 100VDC RAD

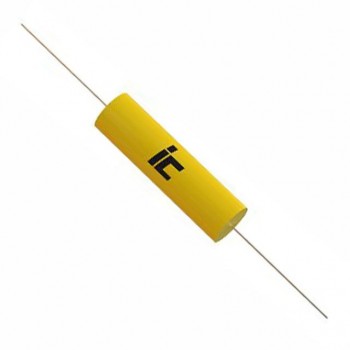

505PHC850K
