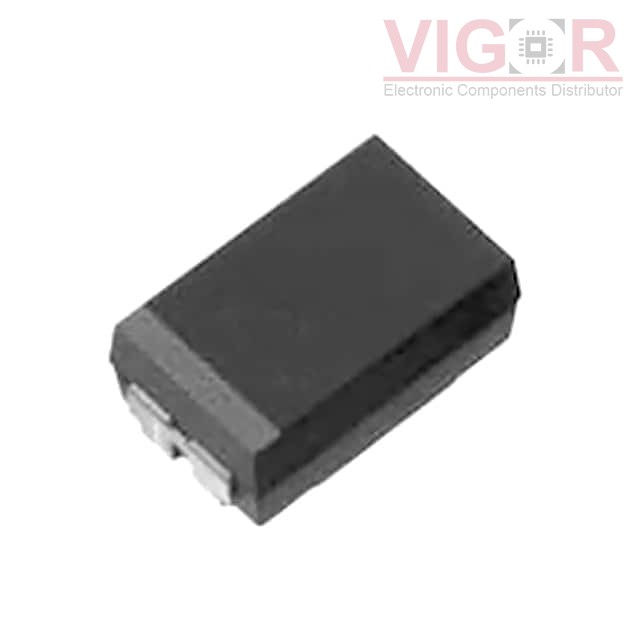

TMCSA1D684MTRF

Part No :: TMCSA1D684MTRF

Manufacturer: Vishay / Sprague

VIGOR # :: 989423

Description: CAP TANT 680NF 20% 20V 1206

Catalog: Tantalum Capacitors

DataSheet: TMCSA1D684MTRF PDF

Country of origin: -

Date code: -

TMCSA1D684MTRF Specifications

Type	Description
Series:	TMCS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	0.68 µF
Tolerance:	±20%
Voltage - Rated:	20 V
Type:	Molded
ESR (Equivalent Series Resistance):	9.7Ohm @ 100kHz
Operating Temperature:	-55°C ~ 125°C
Lifetime @ Temp.:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.071" (1.80mm)
Lead Spacing:	-
Manufacturer Size Code:	A
Ratings:	-
Features:	General Purpose
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2000

Shipped from

HK warehouse

Expected Shipping Date

May 03 - May 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4600~~	~~$0.46~~

Current price of TMCSA1D684MTRF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

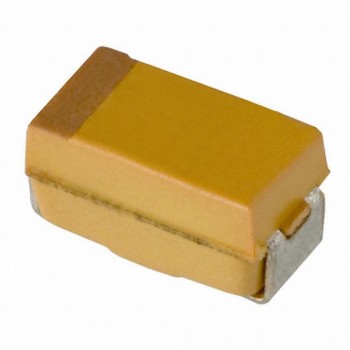

TPSC336M010Y0375
