SGNMA3T20005

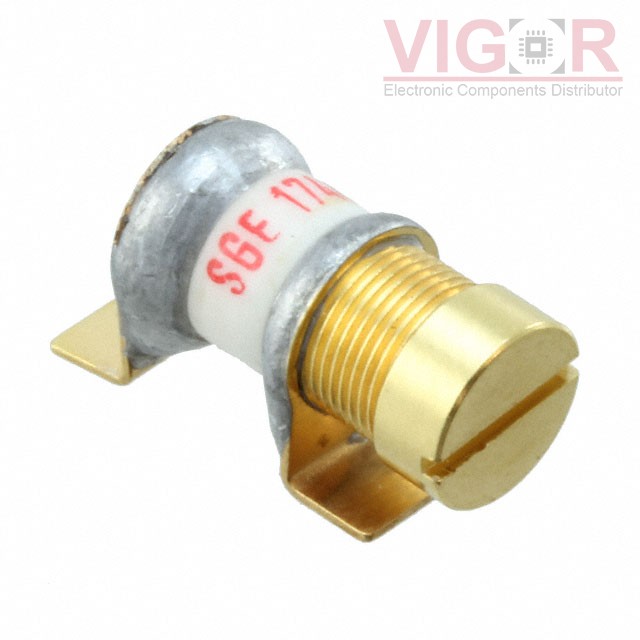

Image is for reference,
please contact us to get the real picture

Part No :: SGNMA3T20005

Manufacturer: Sprague Goodman

Description: CAP TRIMMER 2-20PF 1000V SMD

Catalog: Trimmers, Variable Capacitors

DataSheet: SGNMA3T20005 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SGNMA3T20005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SGNMA3T20005 Specifications

Type	Description
Series:	SGNMA3T
Package:	Bulk
Part Status:	Obsolete
Capacitance Range:	2 ~ 20pF
Adjustment Type:	Side
Voltage - Rated:	1000 V
Dielectric Material:	Polytetrafluoroethylene (PTFE)
Q @ Freq:	2000 @ 100MHz
Size / Dimension:	0.280" Dia (7.11mm)
Height - Seated (Max):	0.522" (13.26mm)
Operating Temperature:	-65°C ~ 125°C
Mounting Type:	Surface Mount
Features:	Non-Magnetic
