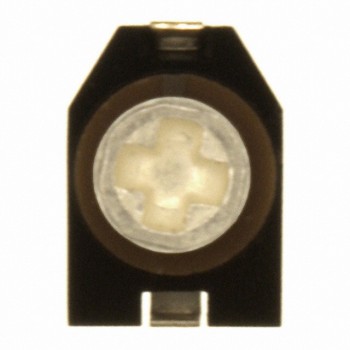

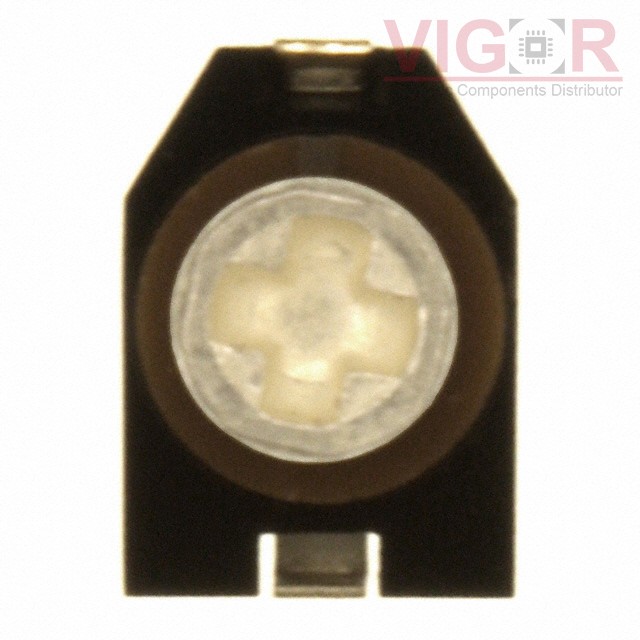

CTZ3E-20C-W1-PF

Part No :: CTZ3E-20C-W1-PF

Manufacturer: KYOCERA Corporation

Description: CAP TRIMMER 4.5-20PF 25V SMD

Catalog: Trimmers, Variable Capacitors

DataSheet: CTZ3E-20C-W1-PF PDF

Availability: 0 pieces

Current price of CTZ3E-20C-W1-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CTZ3E-20C-W1-PF Specifications

Type	Description
Series:	CTZ, Kyocera
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Capacitance Range:	4.5 ~ 20pF
Adjustment Type:	Top
Voltage - Rated:	25 V
Dielectric Material:	Ceramic
Q @ Freq:	300 @ 1MHz
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.071" (1.80mm)
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Features:	Low Profile
