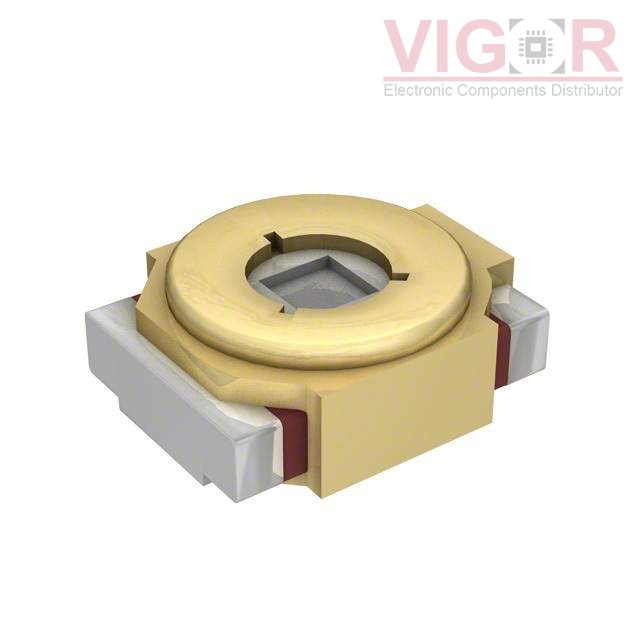

TZY2Z100A001B00

Part No :: TZY2Z100A001B00

Manufacturer: TOKO / Murata

Description: CAP TRIMMER 3-10PF 25V SMD

Catalog: Trimmers, Variable Capacitors

DataSheet: TZY2Z100A001B00 PDF

Availability: 0 pieces

Current price of TZY2Z100A001B00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TZY2Z100A001B00 Specifications

Type	Description
Series:	TZY2
Package:	Bulk
Part Status:	Obsolete
Capacitance Range:	3 ~ 10pF
Adjustment Type:	Top
Voltage - Rated:	25 V
Dielectric Material:	Ceramic
Q @ Freq:	500 @ 1MHz
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.049" (1.25mm)
Operating Temperature:	-25°C ~ 85°C
Mounting Type:	Surface Mount
Features:	General Purpose
