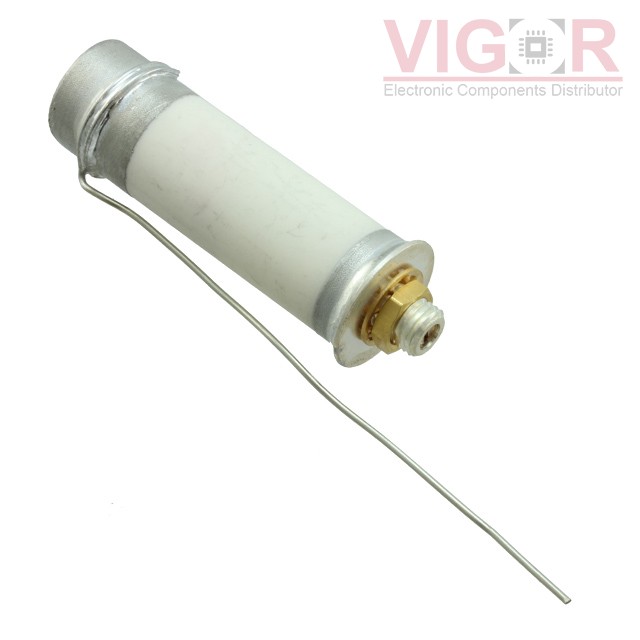

SGNMNC2236

Part No :: SGNMNC2236

Manufacturer: Sprague Goodman

Description: CAP TRIM 2-23PF 6000V CHAS MNT

Catalog: Trimmers, Variable Capacitors

DataSheet: SGNMNC2236 PDF

Availability: 0 pieces

Current price of SGNMNC2236 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SGNMNC2236 Specifications

Type	Description
Series:	SGNM-Series 2
Package:	Bulk
Part Status:	Obsolete
Capacitance Range:	2 ~ 23pF
Adjustment Type:	-
Voltage - Rated:	6000 V
Dielectric Material:	Ceramic
Q @ Freq:	1200 @ 25MHz
Size / Dimension:	0.550" Dia (13.97mm)
Height - Seated (Max):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Chassis Mount
Features:	Non-Magnetic, Sealed
