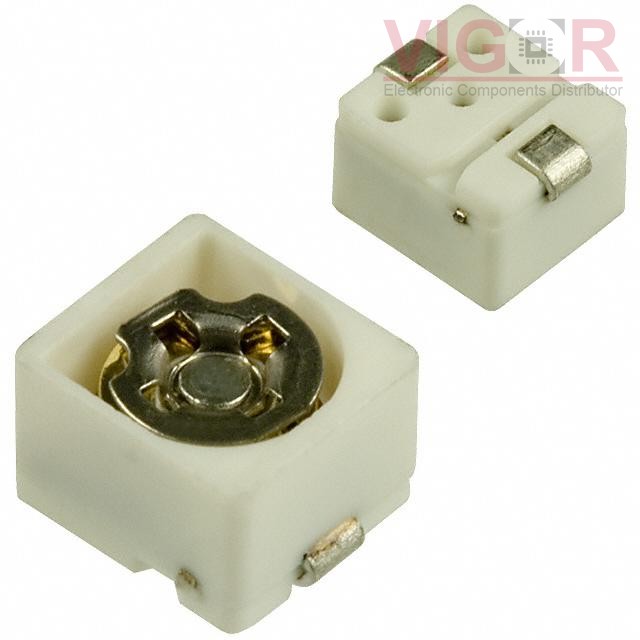

TZB4Z100AA10B00

Part No :: TZB4Z100AA10B00

Manufacturer: TOKO / Murata

Description: CAP TRIMMER 3-10PF 100V SMD

Catalog: Trimmers, Variable Capacitors

DataSheet: TZB4Z100AA10B00 PDF

Availability: 0 pieces

Current price of TZB4Z100AA10B00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TZB4Z100AA10B00 Specifications

Type	Description
Series:	TZB4
Package:	Bulk
Part Status:	Obsolete
Capacitance Range:	3 ~ 10pF
Adjustment Type:	Top
Voltage - Rated:	100 V
Dielectric Material:	Ceramic
Q @ Freq:	500 @ 1MHz
Size / Dimension:	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max):	0.126" (3.20mm)
Operating Temperature:	-25°C ~ 85°C
Mounting Type:	Surface Mount
Features:	General Purpose

Please confirm the specifications of the products when ordering.
