SGNMNC3806E

SGNMNC3806E

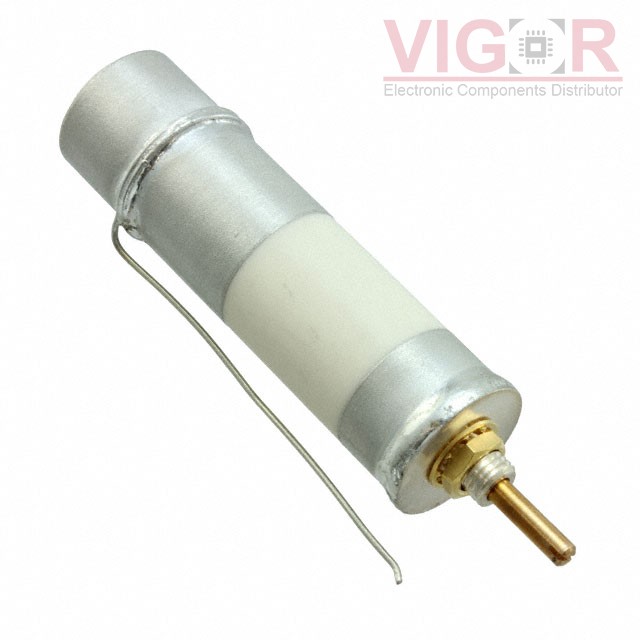

Image is for reference,
please contact us to get the real picture

Part No :

SGNMNC3806E

Manufacturer
Sprague Goodman
Description
CAP TRIM 5-85PF 6000V CHAS MNT
Catalog
Trimmers, Variable Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Oct 02 - Oct 06 2025
DataSheet
SGNMNC3806E PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SGNMNC3806E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SGNMNC3806E Specifications
Type Description
Series:SGNM-Series 3
Package:Bulk
Part Status:Obsolete
Capacitance Range:5 ~ 85pF
Adjustment Type:-
Voltage - Rated:6000 V
Dielectric Material:Ceramic
Q @ Freq:500 @ 25MHz
Size / Dimension:0.710" Dia (18.03mm)
Height - Seated (Max):-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Chassis Mount
Features:Non-Magnetic, Sealed
