XGL4020-102MEC

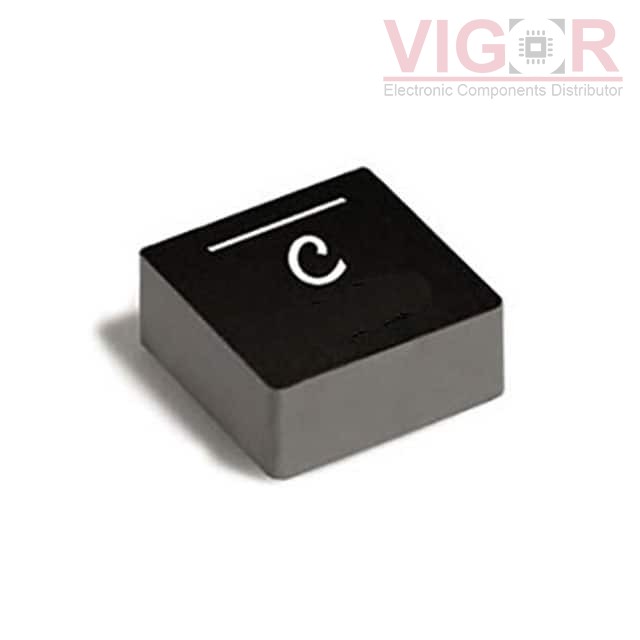

Image is for reference,
please contact us to get the real picture

Part No :: XGL4020-102MEC

Manufacturer: COILCRAFT

Description: SHIELDED POWER INDUCTORS, 1.0UH

Catalog: Fixed Inductors

DataSheet: XGL4020-102MEC PDF

Availability: 9500 pieces

Unit Price: ~~$2.40000~~

Current price of XGL4020-102MEC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XGL4020-102MEC Specifications

Type	Description
Series:	XGL4020
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	-
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	12 A
Current - Saturation (Isat):	8.8A
Shielding:	Shielded
DC Resistance (DCR):	9mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	60MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.083" (2.10mm)
