DHP106095S-560MHF

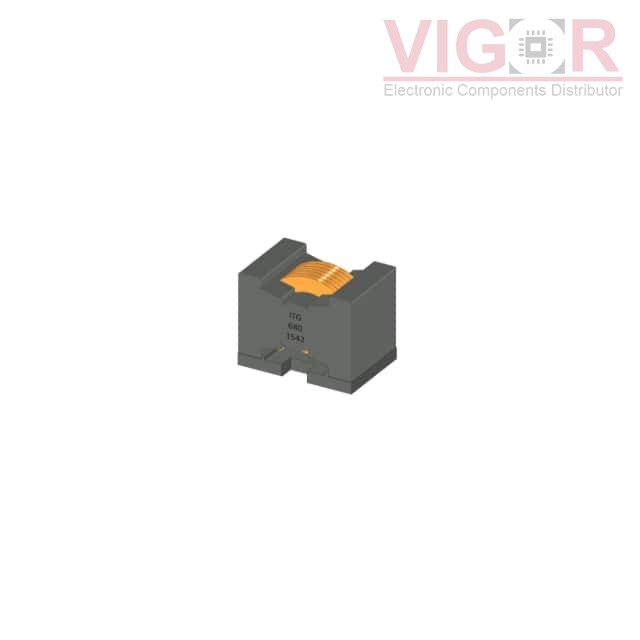

Image is for reference,
please contact us to get the real picture

Part No :: DHP106095S-560MHF

Manufacturer: ITG Electronics, Inc.

Description: 56UH, 20%, 14.7MOHM, 15.2AMP MAX

Catalog: Fixed Inductors

DataSheet: DHP106095S-560MHF PDF

Availability: 30 pieces

Unit Price: ~~$6.46600~~

Current price of DHP106095S-560MHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DHP106095S-560MHF Specifications

Type	Description
Series:	DHP106095S
Package:	Tray
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±20%
Current Rating (Amps):	12 A
Current - Saturation (Isat):	15.2A
Shielding:	Shielded
DC Resistance (DCR):	14.7mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 130°C
Inductance Frequency - Test:	300 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical
Supplier Device Package:	-
Size / Dimension:	1.063" L x 0.724" W (27.00mm x 18.40mm)
Height - Seated (Max):	0.949" (24.10mm)
