SQ10A-R47MHF

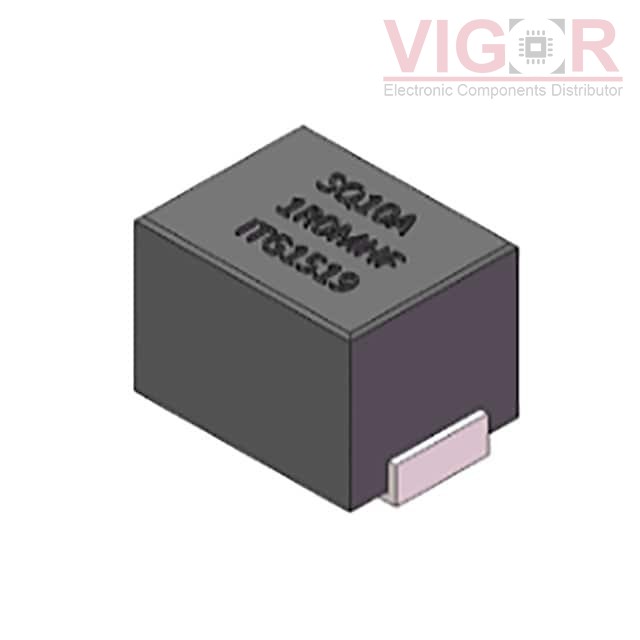

Image is for reference,
please contact us to get the real picture

Part No :: SQ10A-R47MHF

Manufacturer: ITG Electronics, Inc.

Description: 0.47UH, 20%, 2.3MOHM, 40AMP MAX.

Catalog: Fixed Inductors

DataSheet: SQ10A-R47MHF PDF

Availability: 1800 pieces

Unit Price: ~~$1.25500~~

Current price of SQ10A-R47MHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SQ10A-R47MHF Specifications

Type	Description
Series:	SQ10
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	40A
Shielding:	Shielded
DC Resistance (DCR):	2.3mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 130°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.327" W (12.50mm x 8.30mm)
Height - Seated (Max):	0.335" (8.50mm)

Please confirm the specifications of the products when ordering.
