SM1608A-R56MHF

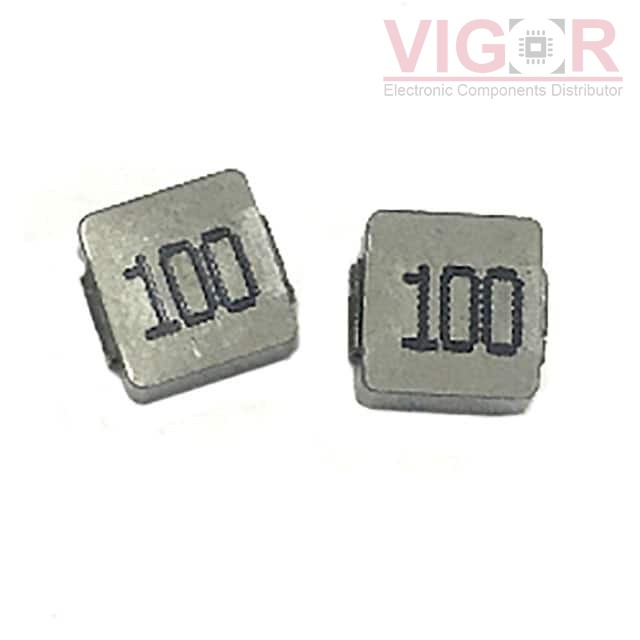

Image is for reference,
please contact us to get the real picture

Part No :: SM1608A-R56MHF

Manufacturer: ITG Electronics, Inc.

Description: 0.56UH, 20%, 10.9MOHM, 9.5AMP MA

Catalog: Fixed Inductors

DataSheet: SM1608A-R56MHF PDF

Availability: 0 pieces

Unit Price: ~~$0.76000~~

Current price of SM1608A-R56MHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SM1608A-R56MHF Specifications

Type	Description
Series:	SM1608A
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	7.3 A
Current - Saturation (Isat):	9.5A
Shielding:	Shielded
DC Resistance (DCR):	12.55mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.173" L x 0.165" W (4.40mm x 4.20mm)
Height - Seated (Max):	0.236" (6.00mm)
