0603AF-47NXJEW

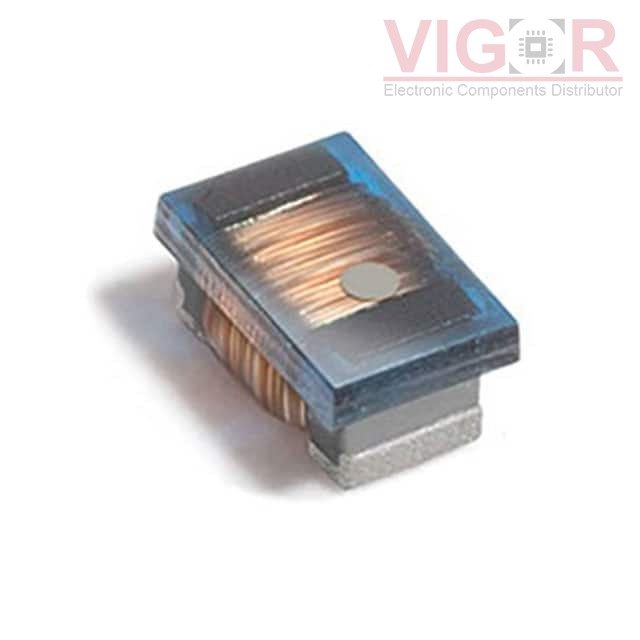

Image is for reference,
please contact us to get the real picture

Part No :: 0603AF-47NXJEW

Manufacturer: COILCRAFT

Description: WIREWOUND INDUCTOR 47NH@7.9MHZ

Catalog: Fixed Inductors

DataSheet: 0603AF-47NXJEW PDF

Availability: 1624 pieces

Unit Price: ~~$1.49000~~

Current price of 0603AF-47NXJEW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0603AF-47NXJEW Specifications

Type	Description
Series:	0603AF
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	47 nH
Tolerance:	±5%
Current Rating (Amps):	1.7 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	52mOhm Max
Q @ Freq:	13 @ 7.9MHz
Frequency - Self Resonant:	2.25GHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Size / Dimension:	0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max):	0.036" (0.91mm)
