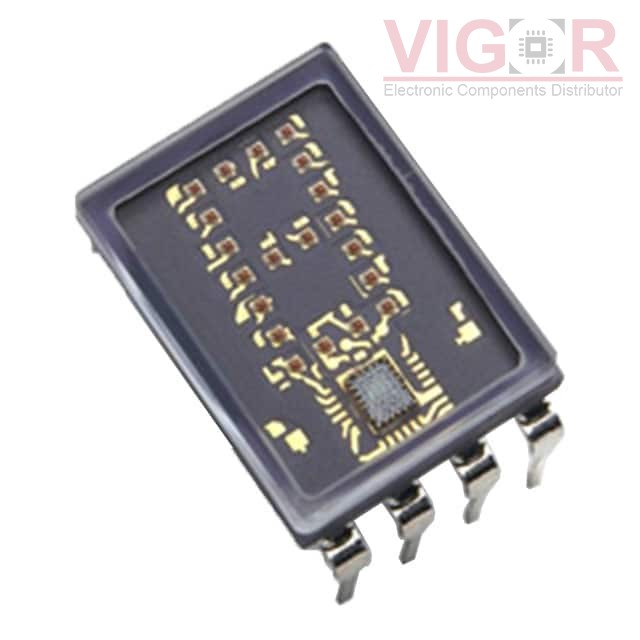

HDSP-0761

Part No :: HDSP-0761

Manufacturer: Broadcom

Description: DISPLAY 7-SEG 0.29" SGL RED 8DIP

Catalog: Display Modules - LED Character and Numeric

DataSheet: HDSP-0761 PDF

Availability: 0 pieces

Current price of HDSP-0761 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HDSP-0761 Specifications

Type	Description
Series:	HDSP-076x
Package:	Bulk
Part Status:	Active
Display Format:	-
Number of Characters:	1
Size / Dimension:	0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm)
Digit/Alpha Size:	0.29" (7.37mm)
Display Type:	7-Segment
Common Pin:	Common Anode
Color:	Red
Voltage - Forward (Vf) (Typ):	-
Current - Test:	10mA
Millicandela Rating:	0.06mcd ~ 1.17mcd
Wavelength - Peak:	635nm
Power Dissipation (Max):	573mW
Package / Case:	8-DIP (0.600", 15.20mm)

Please confirm the specifications of the products when ordering.
