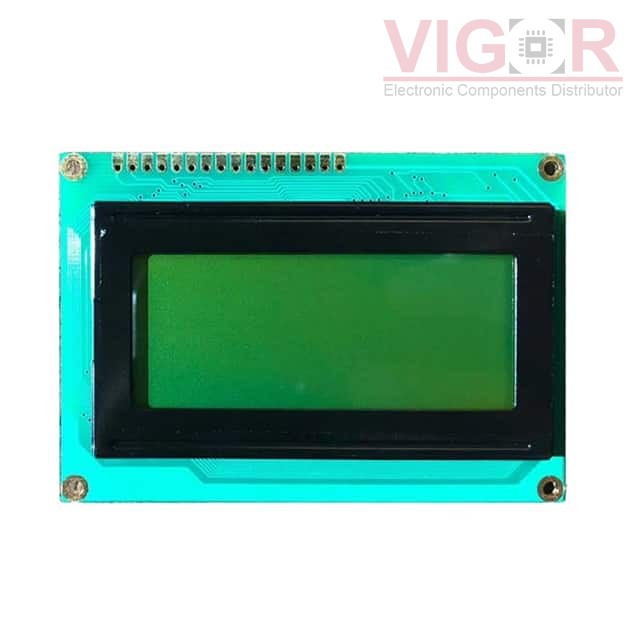

ACM1601C-RN-YBH

Part No :: ACM1601C-RN-YBH

Manufacturer: AZ Displays

Description: 16X1 CHARACTER LCD REFLECTIVE

Catalog: Display Modules - LCD, OLED Character and Numeric

DataSheet: ACM1601C-RN-YBH PDF

Availability: 302 pieces

Unit Price: ~~$4.89000~~

Current price of ACM1601C-RN-YBH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACM1601C-RN-YBH Specifications

Type	Description
Series:	ACM1601C
Package:	Box
Part Status:	Active
Number of Characters:	-
Display Format:	16 x 1
Character Format:	5 x 8 Dots
Display Type:	FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic
Display Mode:	Reflective
Character Size:	6.56mm H x 3.07mm W
Outline L x W x H:	80.00mm x 36.00mm x 13.50mm
Viewing Area:	64.50mm L x 14.00mm W
Backlight:	LED
Voltage - Supply:	2.7V ~ 5.5V
Dot Size:	0.55mm W x 0.57mm H
Interface:	-
Controller Type:	ST7066U
Operating Temperature:	-20°C ~ 70°C
Text Color:	-
Background Color:	-
