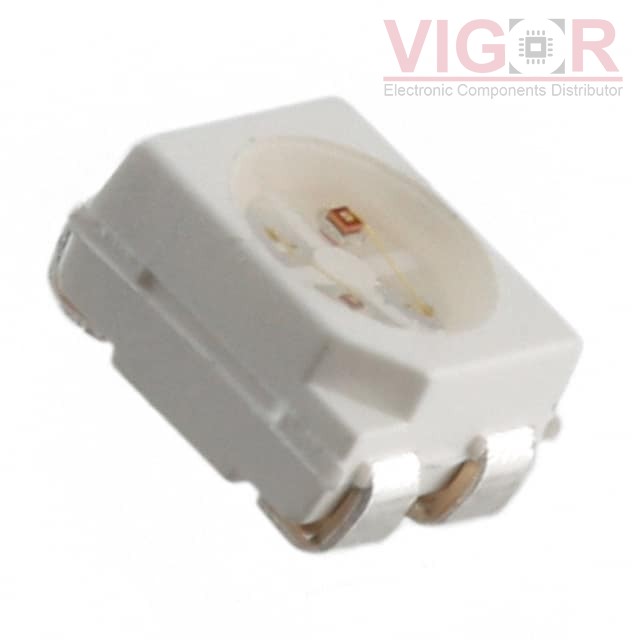

HSMF-A202-A00J1

Part No :: HSMF-A202-A00J1

Manufacturer: Broadcom

VIGOR # :: 1670511

Description: LED RED/YELLOW CLEAR 4PLCC SMD

Catalog: LED Indication - Discrete

DataSheet: HSMF-A202-A00J1 PDF

Country of origin: -

Date code: -

HSMF-A202-A00J1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Yellow
Configuration:	Independent
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	16mcd Red, 12mcd Yellow
Lens Style:	Round with Flat Top
Lens Size:	2.20mm Dia
Voltage - Forward (Vf) (Typ):	2.2V Red, 2.2V Yellow
Current - Test:	20mA Red, 20mA Yellow
Viewing Angle:	120°
Mounting Type:	Surface Mount
Wavelength - Dominant:	626nm Red, 585nm Yellow
Wavelength - Peak:	635nm Red, 583nm Yellow
Features:	-
Package / Case:	4-PLCC
Supplier Device Package:	4-PLCC
Size / Dimension:	3.20mm L x 2.80mm W
Height (Max):	2.10mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 21375

Shipped from

HK warehouse

Expected Shipping Date

Jan 14 - Jan 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.63~~	~~$0.63~~
22000	~~$0.16~~	~~$3 599.64~~

Current price of HSMF-A202-A00J1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
